2013 Malibu VLX Screen Hazy, Frozen, or Dim? The 3962030.1 Medallion Fix
The 6.5 inch Medallion touchscreen on the 2013 Malibu VLX develops three very predictable failures as the OEM components age: glue leaking inside as a cloudy haze, frozen or inaccurate touch where pressing one button fires a different one, and a backlight that dims to the point of being unreadable in the sun. All three trace back to the same defective OEM bond. Here is what is happening and how to fix it.
In this guide
- What the 2013 Malibu VLX 6.5 inch Medallion display is, and every cross-reference part number it covers
- The 4 OEM failure modes: glue leaking inside, inaccurate touch, frozen zones, and dim backlight
- Why the defective OEM bond causes all four symptoms
- How we replace the defective OEM components with our updated anti-delamination design
What Is the 2013 Malibu VLX Touchscreen?
The 6.5 inch Medallion Smart Touch display
The 2013 Malibu VLX uses the 6.5 inch Medallion Smart Touch display at the helm. Built by Medallion Instrumentation Systems, it is the central control surface for ballast, speed, engine data, audio, and lighting across the entire 2011 to 2015.5 Malibu Wakesetter and Response range. When it fails, it tends to do so in the same three ways every time.
The key insight that every Malibu owner should understand: the expensive electronics are almost always still healthy when these screens fail. The motherboard, housing, wiring harness, and LINC bus connections are typically fine. What fails is a small, specific set of OEM components at the front of the unit, and those are exactly what we replace.
Fits 2011 to 2015.5 Malibu Wakesetter and Response models including the VLX, LSV, MXZ, MXU, and 247 configurations. If any of the four part numbers above appear on the rear housing of your display, this is the correct repair.
The 4 OEM Failure Modes
All caused by the same defective OEM bond
All four failures on the 2013 VLX screen trace back to one root cause: the OEM optical adhesive breaking down. Once it goes, everything layered on top of it starts to fail in sequence.

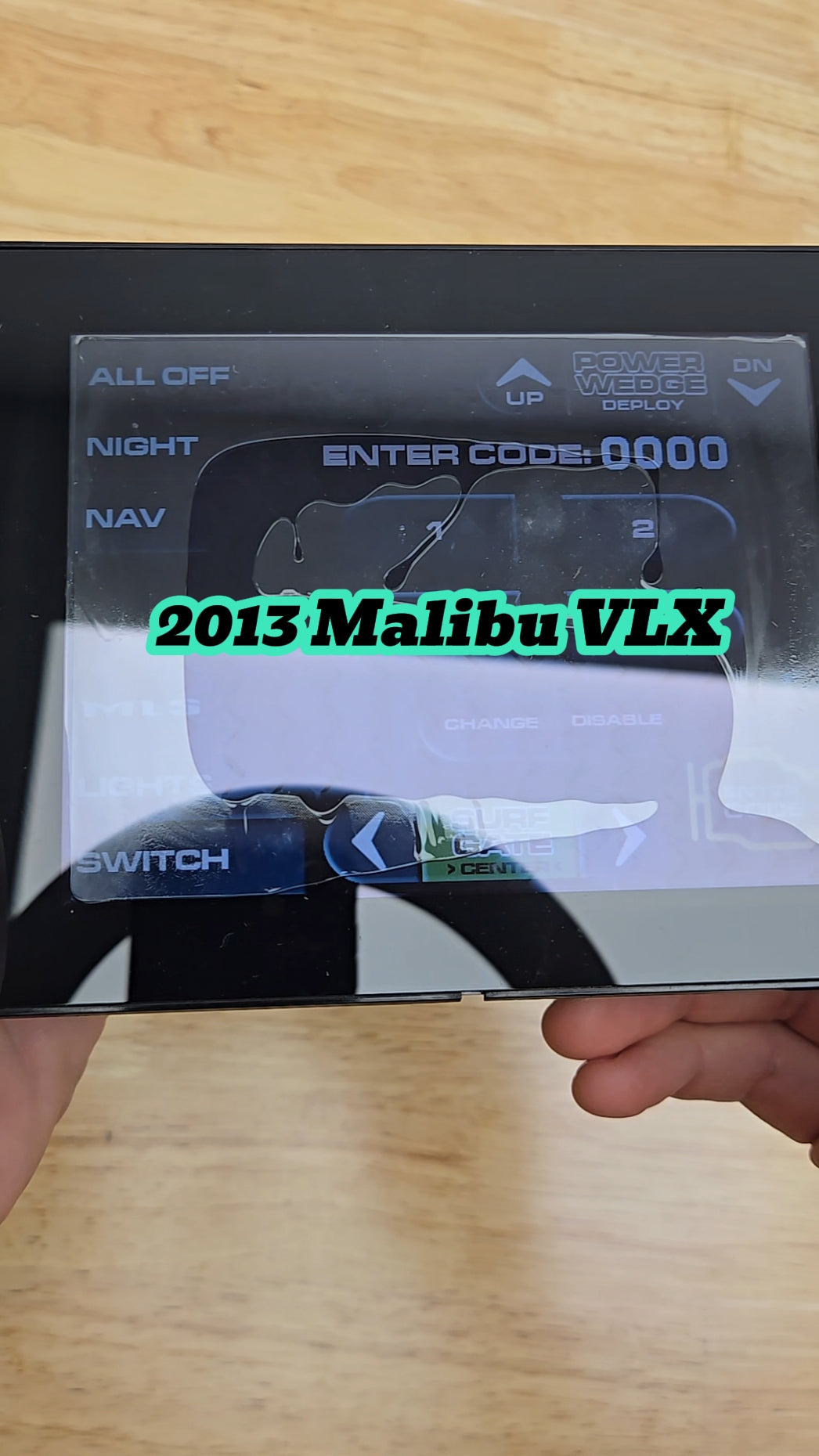

🌊 Glue Leaking Inside
The OEM optical adhesive separates and leaks inward as a watery, cloudy haze behind the glass. It typically starts at a corner or edge and spreads across the panel over time, often with visible bubbling.
👆 Inaccurate Touch
Press one button and a different one activates. As the OEM adhesive separates, it pulls the digitizer layer out of exact alignment with the LCD beneath it, directly causing offset and inaccurate touch response.
❌ Frozen or Unresponsive Areas
Zones of the screen stop registering touch entirely. Controls in those areas become unreachable, which on a VLX can lock you out of ballast, surf, or audio mid-session.
🌓 Dim or Dark Backlight
The display fades and becomes difficult or impossible to read in direct sun. The OEM backlight degrades faster once the sealed bond is compromised and moisture can work its way in.
🎦 Real 2013 Malibu VLX Repair
A 2013 Malibu VLX Medallion 3962030.1 in our shop showing the classic three-failure pattern: glue leaking in, inaccurate touch, and a dim backlight. Watch the diagnosis and the finished result.
Why the OEM Components Fail
The defective bond is the root cause, not user error
The 6.5 inch Medallion Smart Touch is a layered assembly: cover glass on top, a glass digitizer touch grid bonded beneath it, clear optical adhesive between those layers and the LCD, and the LCD module at the back. The OEM adhesive is the weak point in this stack.
On a 2013 VLX, this display has been in direct sun at an open helm for over a decade. The OEM bond was not designed for what a Malibu helm actually sees:
- Direct UV all season, the cover glass filters some UV but not all of it. The OEM polymer chains in the adhesive break down season after season.
- Heat cycling, every ride heats the display, every night in the slip or garage cools it. Each cycle expands and contracts the materials at slightly different rates, stressing the bond at the interface layers.
- Hull and tower vibration, every wave, wake crossing, and trailer mile transmits vibration into the display assembly, accelerating micro-void formation in a bond that is already weakened.
- Marine humidity, once the edge seal opens, moisture has a path in. It accelerates everything else.
How to Remove the Display
Comes out from the front, no specialty tools
The 6.5 inch Medallion comes out of the VLX dash from the front as a complete unit. No heat gun, no dash disassembly, no prying required.
- 1Disconnect the battery before touching the dash electronics.
- 2Remove the mounting fasteners on the rear of the bezel with a standard socket.
- 3Disconnect the wiring harness from the back of the display unit.
- 4Slide the display forward out of the dash with the bezel attached as one complete unit.
- 5Pack it safely and ship it in with the prepaid UPS label emailed after checkout.
Real Customer Result
2013 Malibu VLX, all three OEM failures fixed
A 2013 VLX owner sent in his 3962030.1 with glue leaking in across half the screen, inaccurate touch that made ballast controls nearly unusable, and a backlight too dim to read in the afternoon sun. Dealer pricing on a new Medallion 6.5 inch unit runs $4,000 when available at all.
Why Our Design Outlasts OEM
Brand new parts, updated anti-delamination design throughout
We do not use the same OEM components that failed. Every part we install is brand new, and the design is updated specifically to eliminate the failure modes built into the original:
3 Ways to Fix Yours
Mail-in, DIY kit, or check your part number first
The MTC-6A covers all four cross-reference part numbers on this display. Choose the repair path that fits your timeline and comfort level.
Mail-In Repair
Ship with a prepaid UPS label. We replace the defective OEM components with our updated anti-delamination design, all brand new parts, test, and return within 3 business days. From $1,100. Pay after repair.
Order Mail-In →
DIY Repair Kit
We ship all brand new anti-delamination components with tools and a step-by-step guide. Install yourself, similar to a phone screen swap. Zero downtime. From $800.
View DIY Kit →Replace the defective OEM parts. Fix it right.
Fix Your 2013 Malibu VLX Screen
We replace the delaminated, defective OEM components with our updated anti-delamination design. All brand new parts. Back in 3 business days. Settings preserved. No dealer visit.
Order MTC-6A Repair →
