Display Screen removal and DIY instructions for mtc screens products

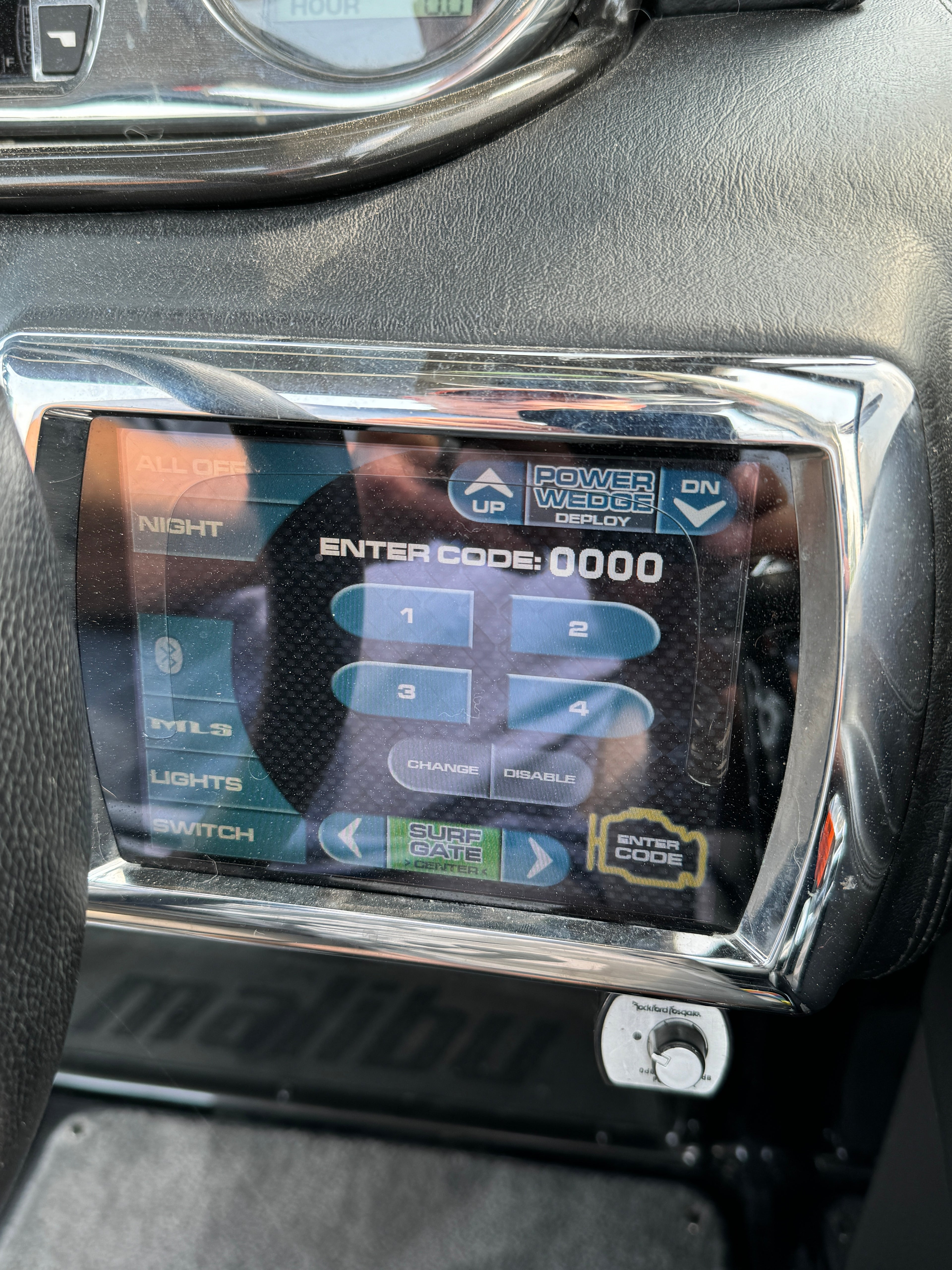

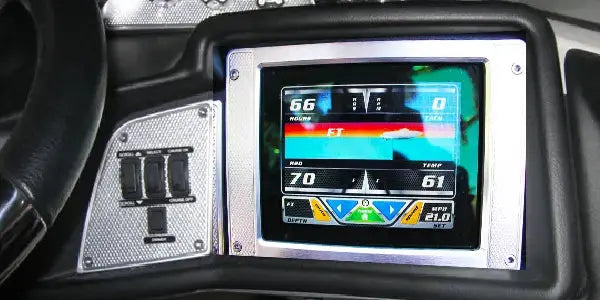

MTC-6A Gen 2.0

For Malibu MTC and Tige Touch 1 customers, this is how to install the DIY repair kit. Be sure to pay attention if you have 2.0 or 2.1, it will be written on the box.

Link to Youtube

MTC-6A Gen 2.1

For Malibu MTC and Tige Touch 1 customers, this is how to install the DIY repair kit. Be sure to pay attention if you have 2.0 or 2.1, it will be written on the box.

Link to Youtube

MTC-6B

This is the DIY Repair video for all customers with 2012 Mastercraft X series, 2012 Sea-doo, and 2015-2016 Chaparral Vortex 6.5 inch medallion touch screens.

Link to Youtube

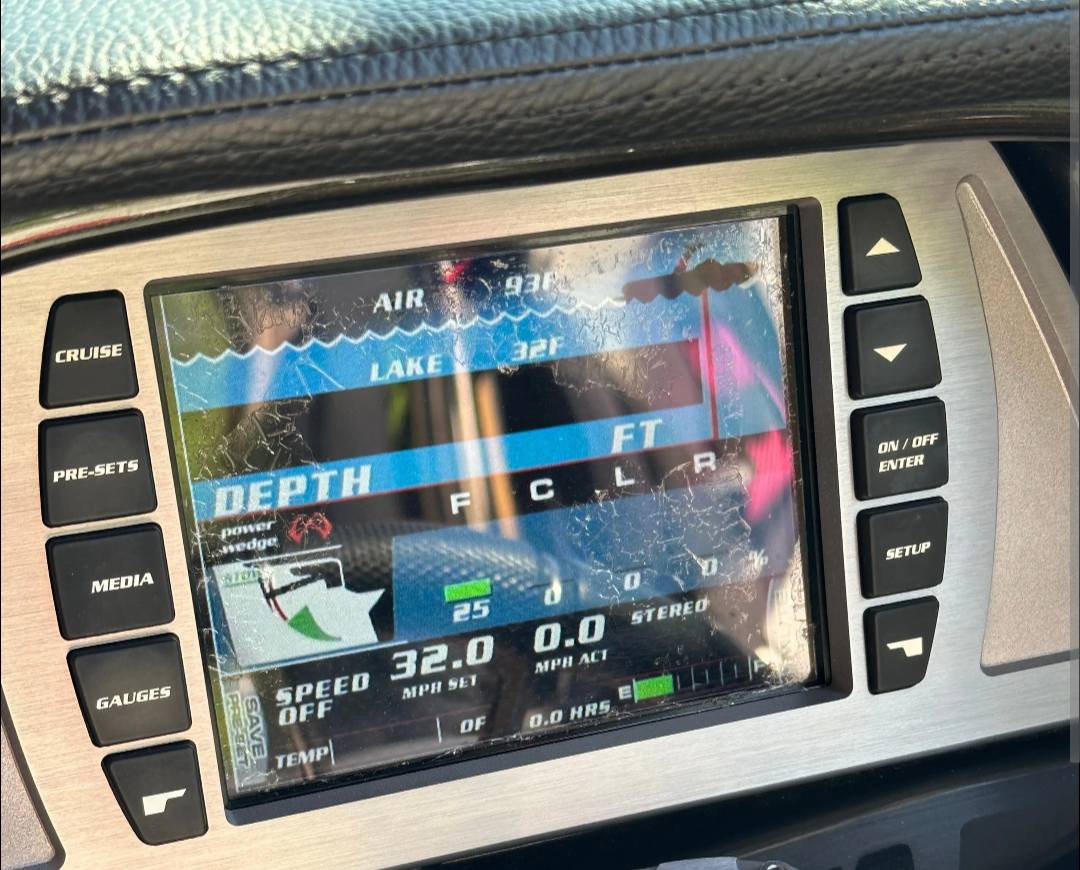

MTC-6C

This is the DIY Repair video for all customers with 2008-2011 Mastercraft BIG display, and the 2009-2010 Malibu Maliview Non Touch screens.

Link to Youtube

MTC-7A

Have a 2015-2017 Malibu or Chaparral Vortex? This is a super easy DIY job.

Link to Youtube

MTC-7B

COMINGSOON

MTC-12A

This is one of our most popular DIY kits, the 12 inch medallion Viper 2. Its easy to replace and requires patience and about 1 hour of time. Be careful to avoid cracking the glass upon removal.

Link to Youtube

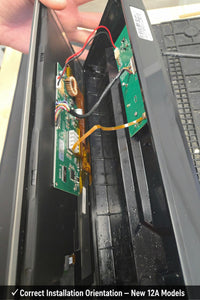

Below are a couple more photos showing how to install the latest revision 12A DIY screen- make sure your installation is lined up like this.

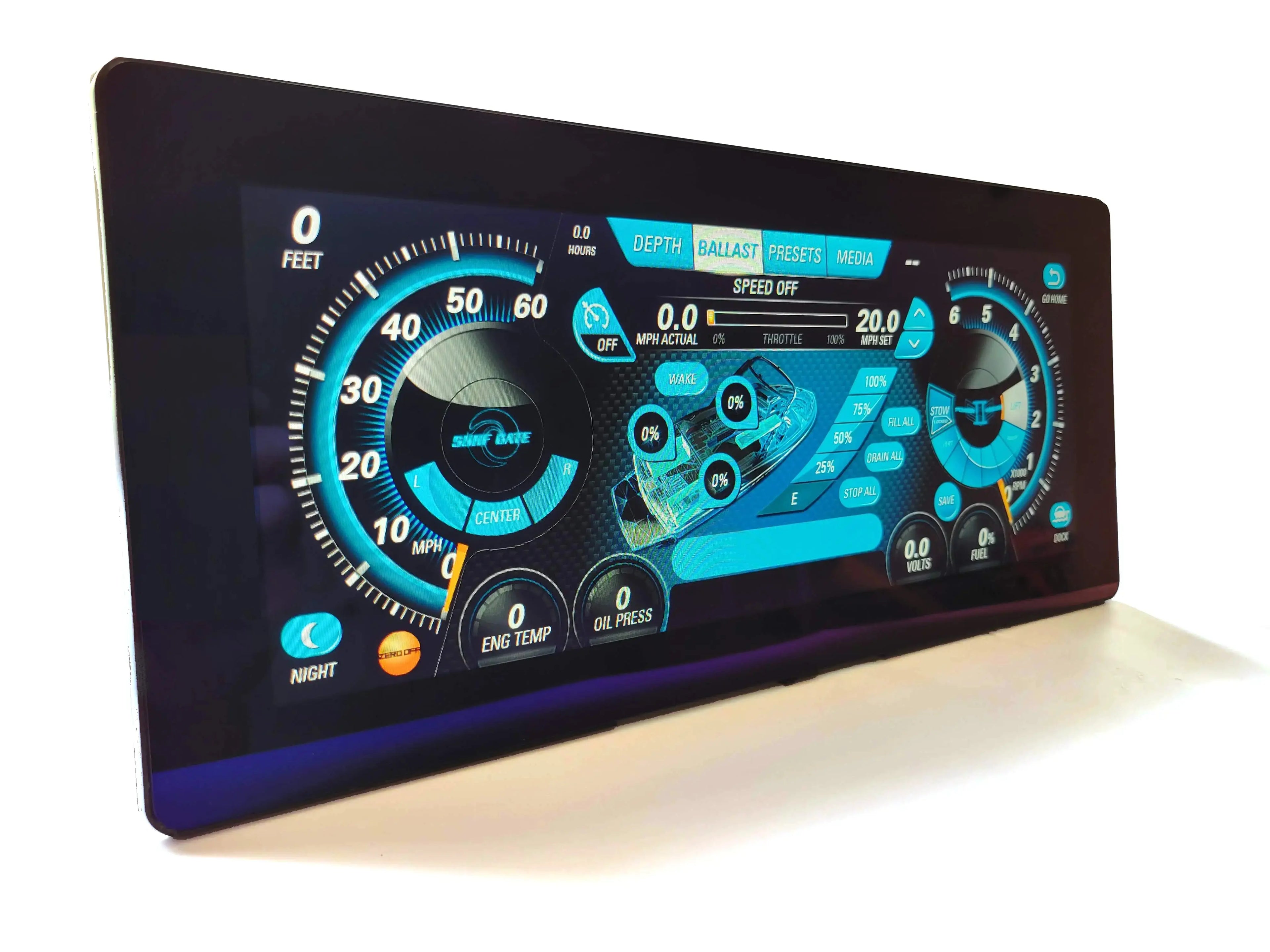

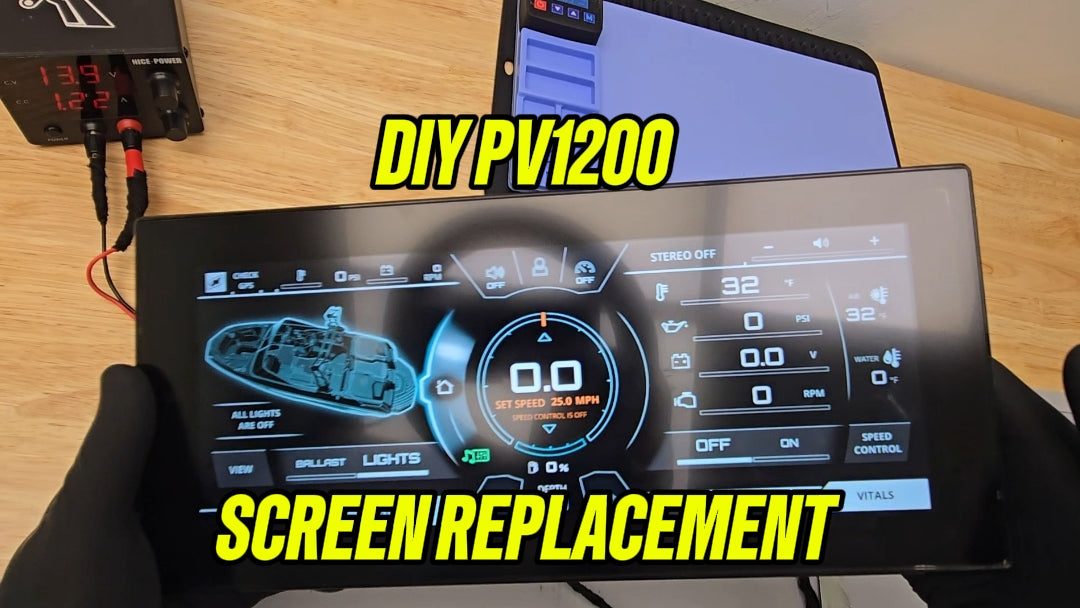

MTC-12B

This is used on the linc panoray, and many other boats including South Bay, trifecta, Mastercraft (Skinny pete) and yamaha. We see frozen touch screen and other LCD issues including delaminated bubble. Check our DIY repair kit

Link to Youtube

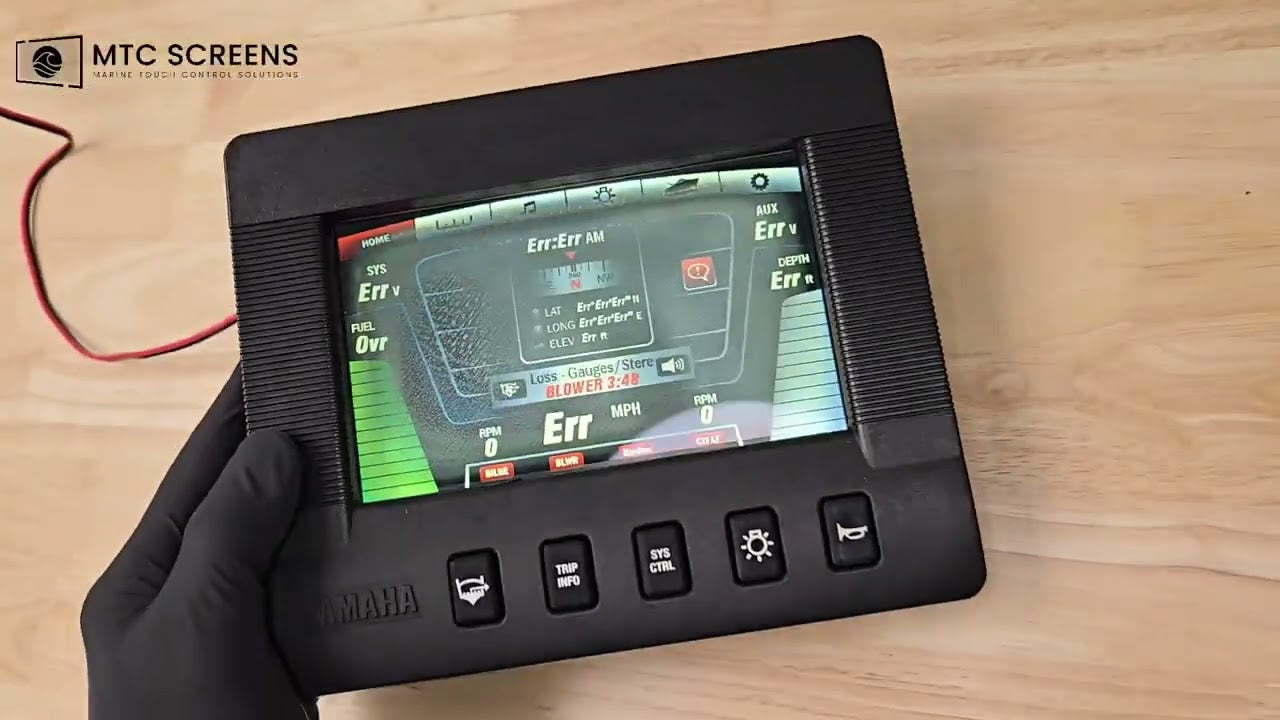

MTC-AV43

This is a great DIY repair kit for the 4.3 yamaha connext system. We have two versions, be sure to check what you currently have installed before ordering. Use black RTV silicone to install the new screen, don't use too much.

Link to Youtube

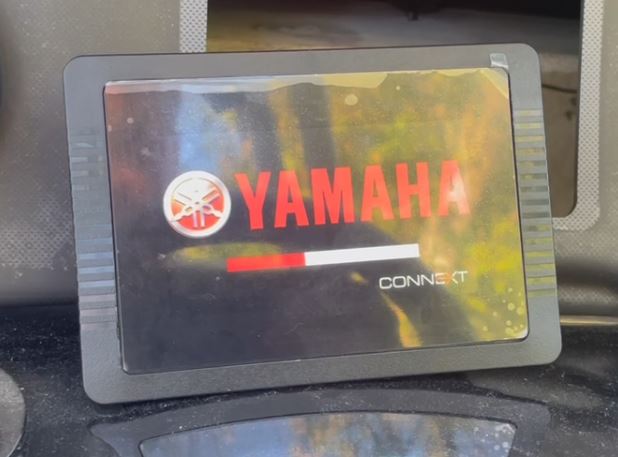

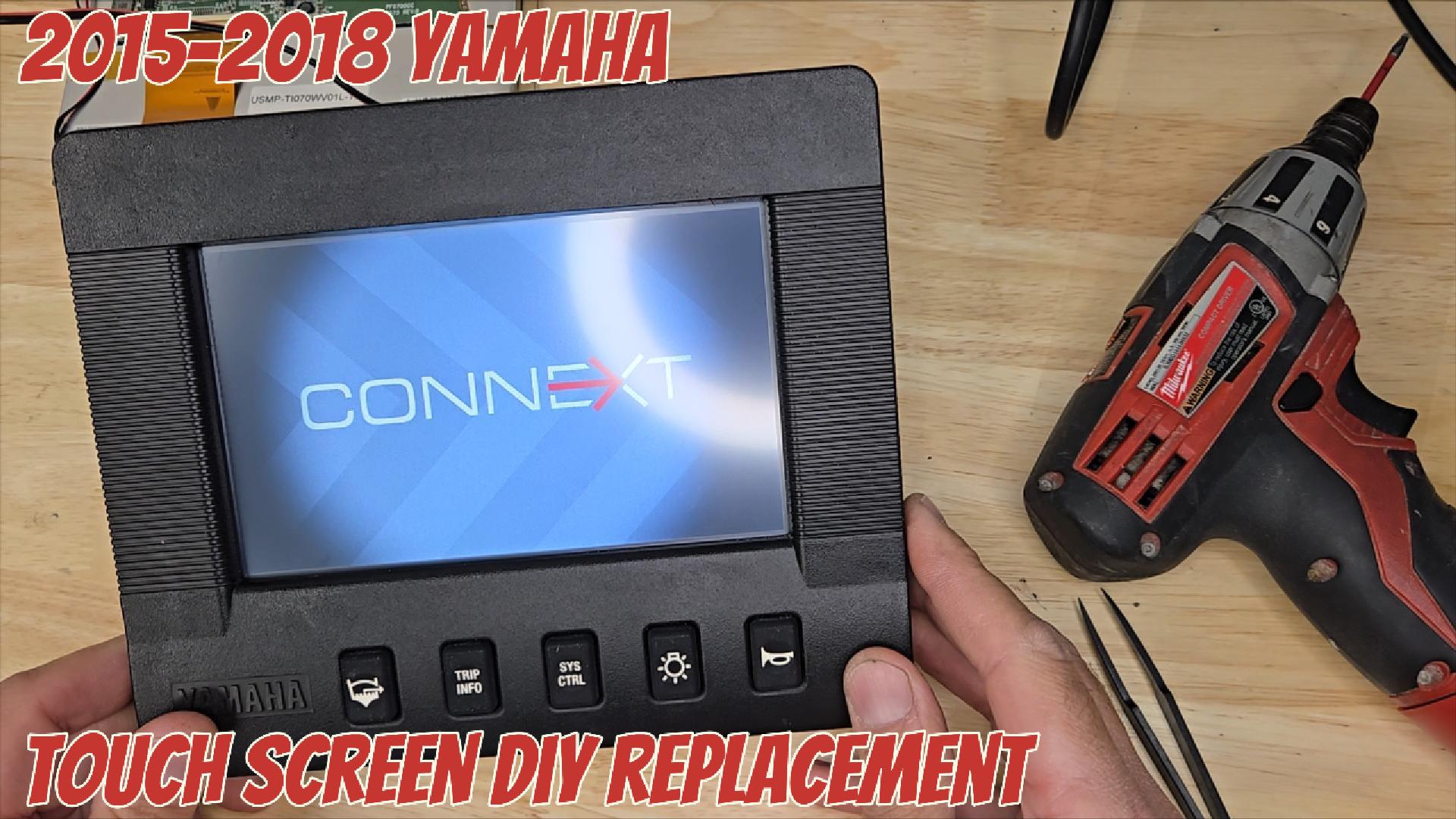

MTC-7E

Link to youtube DIY video for connext 7 first gen

MTC-7F

This is our PV700 replacement screen to fix the common delamination issues. It is used on Yamaha, ATX, Mastercraft, and Supreme boats and many others.

Youtube link How to DIY fix your delaminated 2019+ Yamaha Connext Screen F4Y-U8K12-11-00 (PV700)

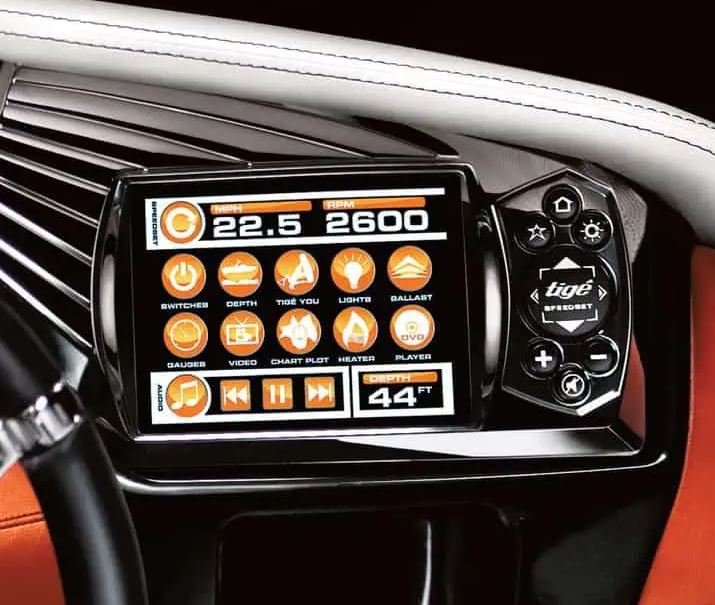

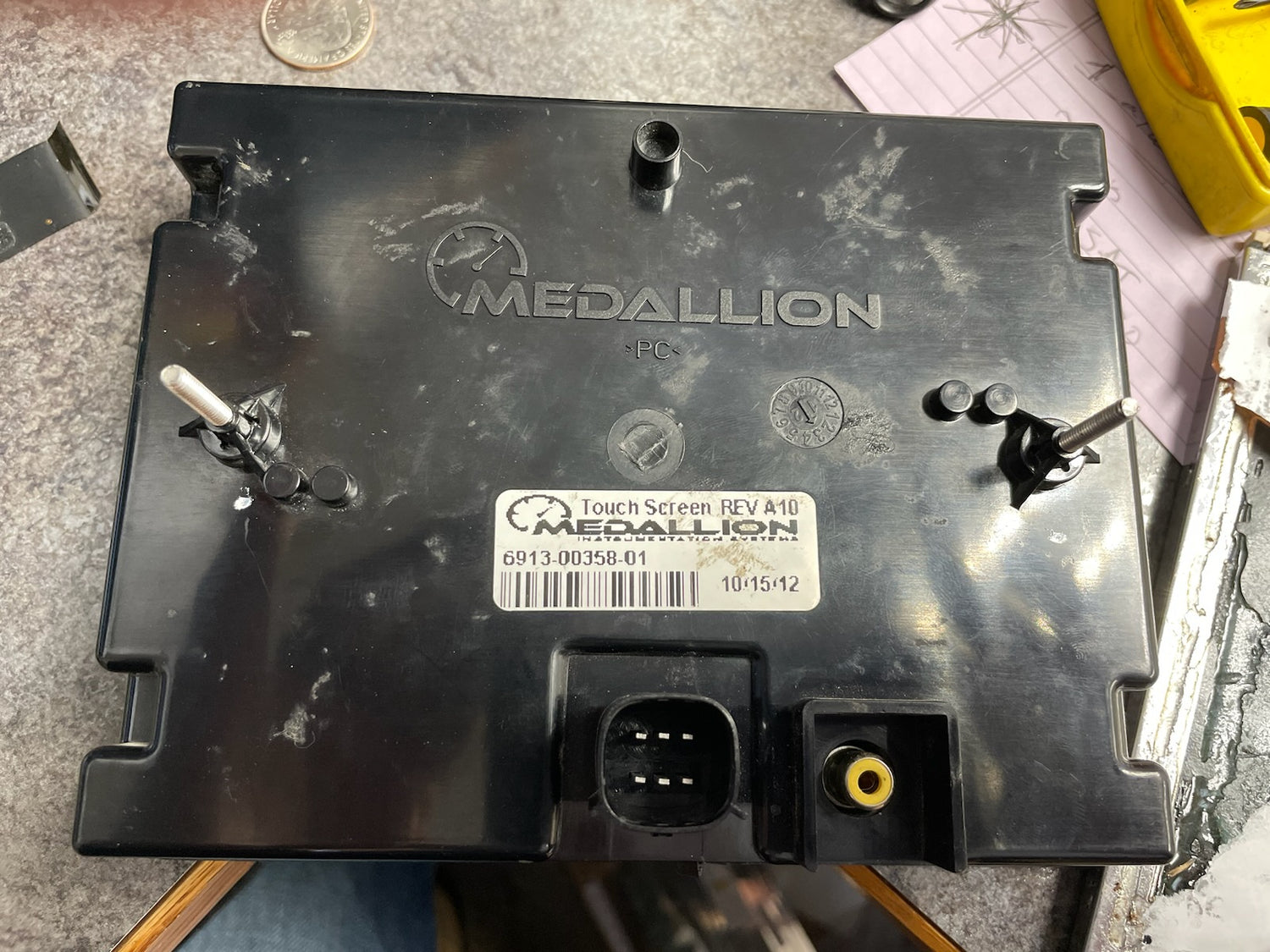

2010-2014 Tige Touch 1 Medallion Display Removal

image001 (2).jpg__PID:06f7acff-0796-4b2e-b428-383858ebb609

image002.jpg__PID:967b2ef4-2838-4858-abb6-0958417ed21f

2023-02-16.jpg__PID:2ef42838-3858-4bb6-8958-417ed21fdd0f

Capture.jpeg__PID:3858ebb6-0958-417e-921f-dd0ff19e4f6a

Step 1

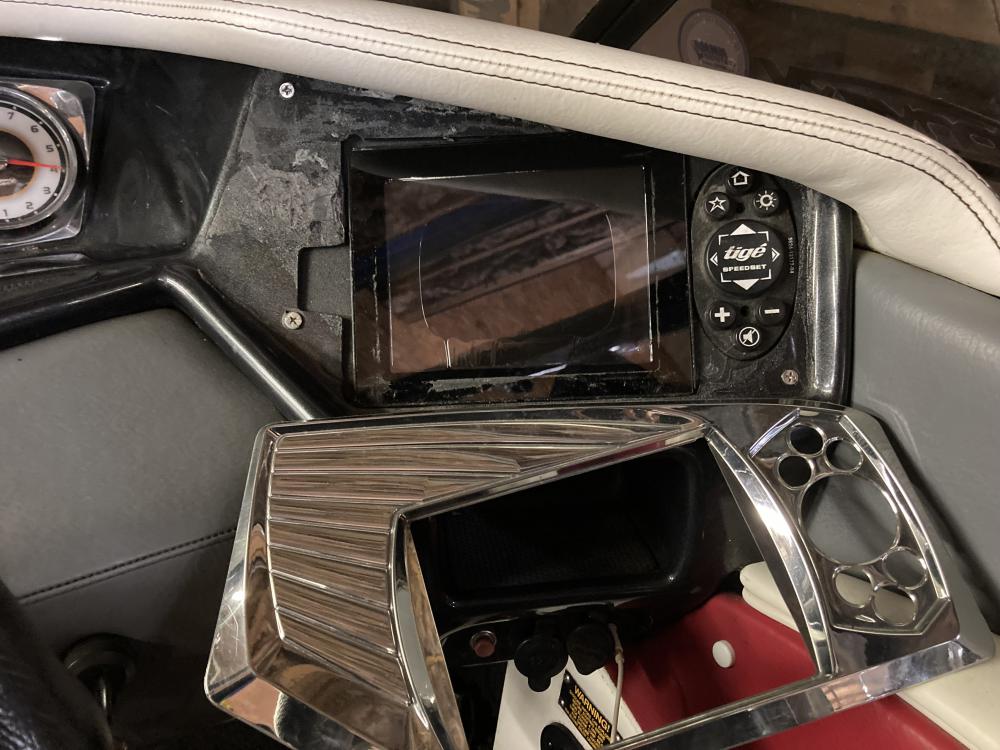

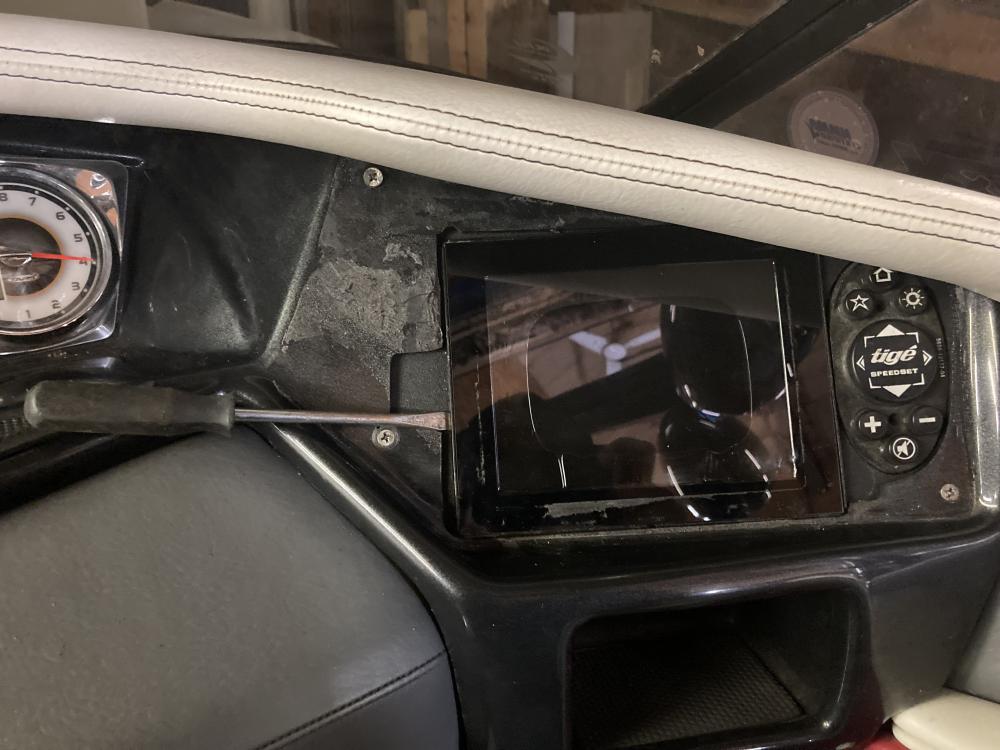

Remove chrome bezel from glass using pry tool . Tape is located on screen perimeter

Step 2

Remove 4x phillips screws to free black mounting plate from dash.

Step 3

From back of unit, remove Yellow RCA video plug, and 6 pin connector. Remove 2 nuts and remove bracket securing display to black plate. Unit can now be removed

Step 4

Reinstall chrome bezel with RTV clear silicone

2015-2018 Yamaha Connext 7 inch Gen 1 Display Removal

Step 1

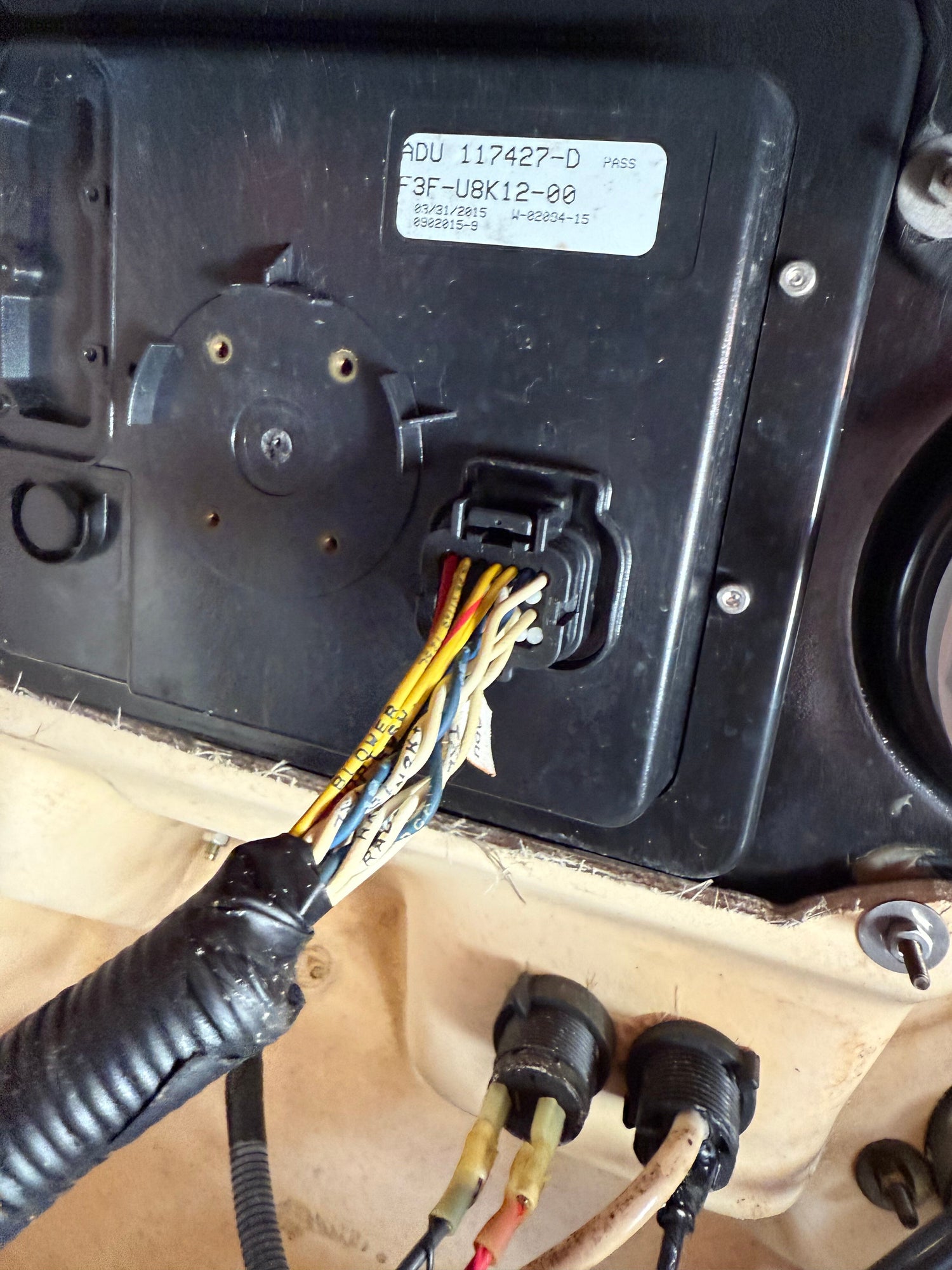

Press plug tab down and remove plug from display body

Step 2

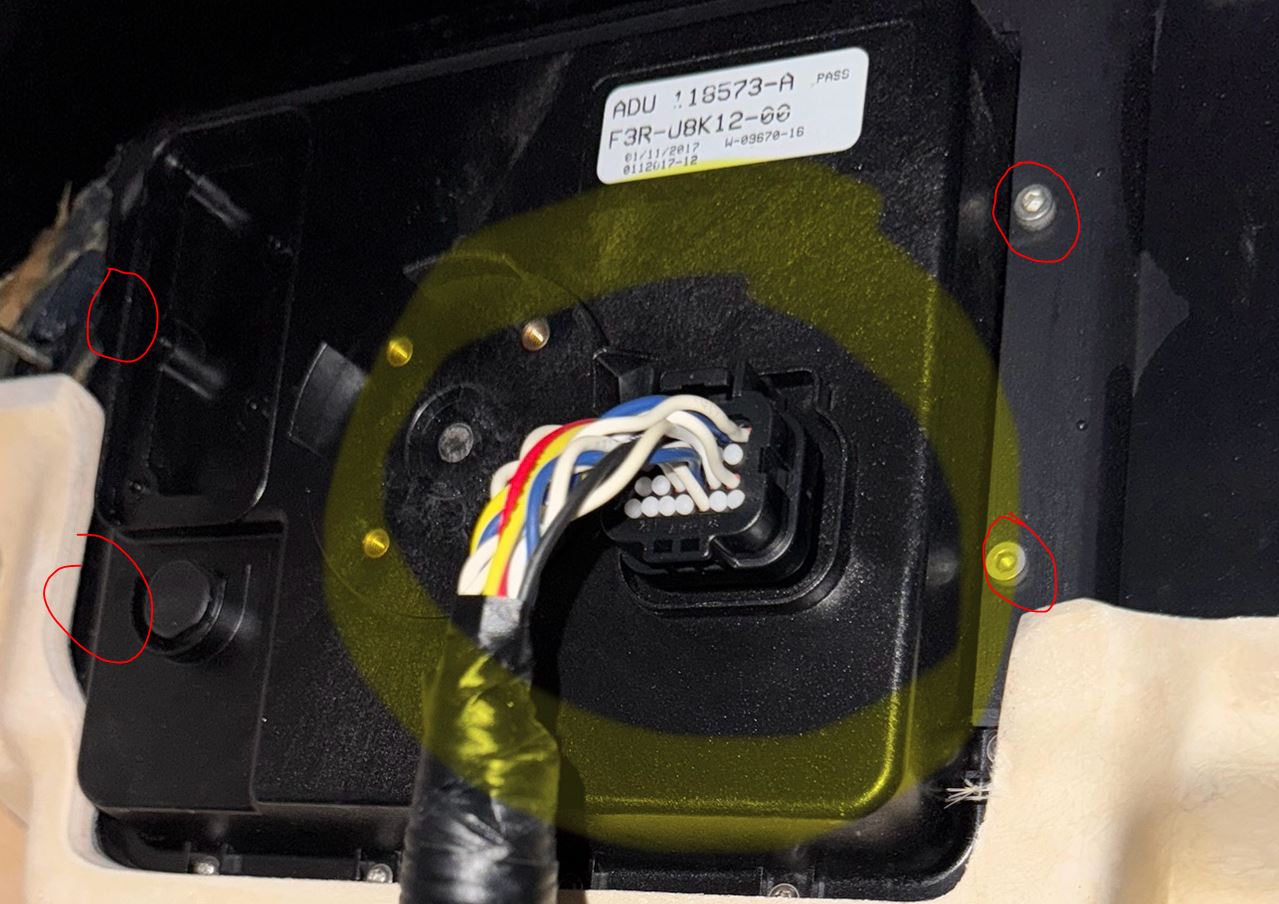

Remove 4x hex screws shown in red circles. Screens comes out the front.

2015-2020 Chaparral Vortex Medallion Display Removal

FB_IMG_1719853993744.jpg__PID:5b476f59-99cf-4762-8b8a-0f9614d145f9

FB_IMG_1719974019650.jpg__PID:6f5999cf-5762-4b8a-8f96-14d145f9844a

nuts.JPG__PID:99cf5762-8b8a-4f96-94d1-45f9844a4e75

Step 1

Reach into helm and remove nuts that secure faux carbon fiber bezel to fiberglass dash. You can lie on your back facing up and reach up to the display

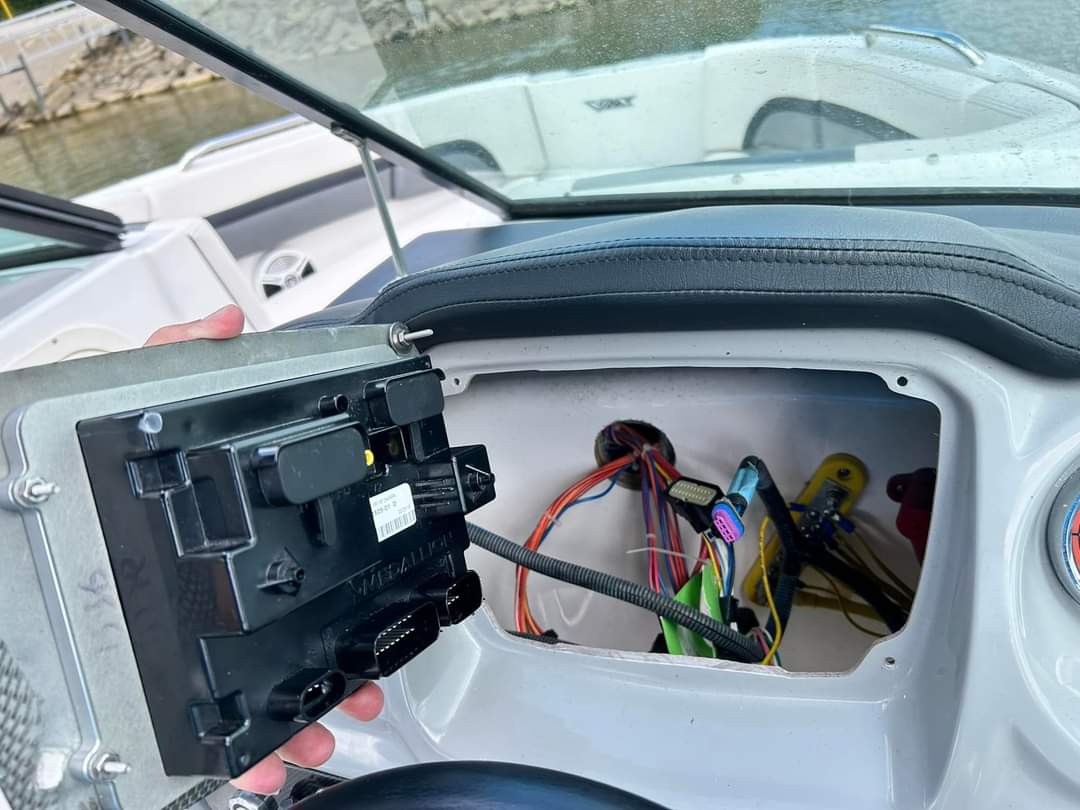

Step 2

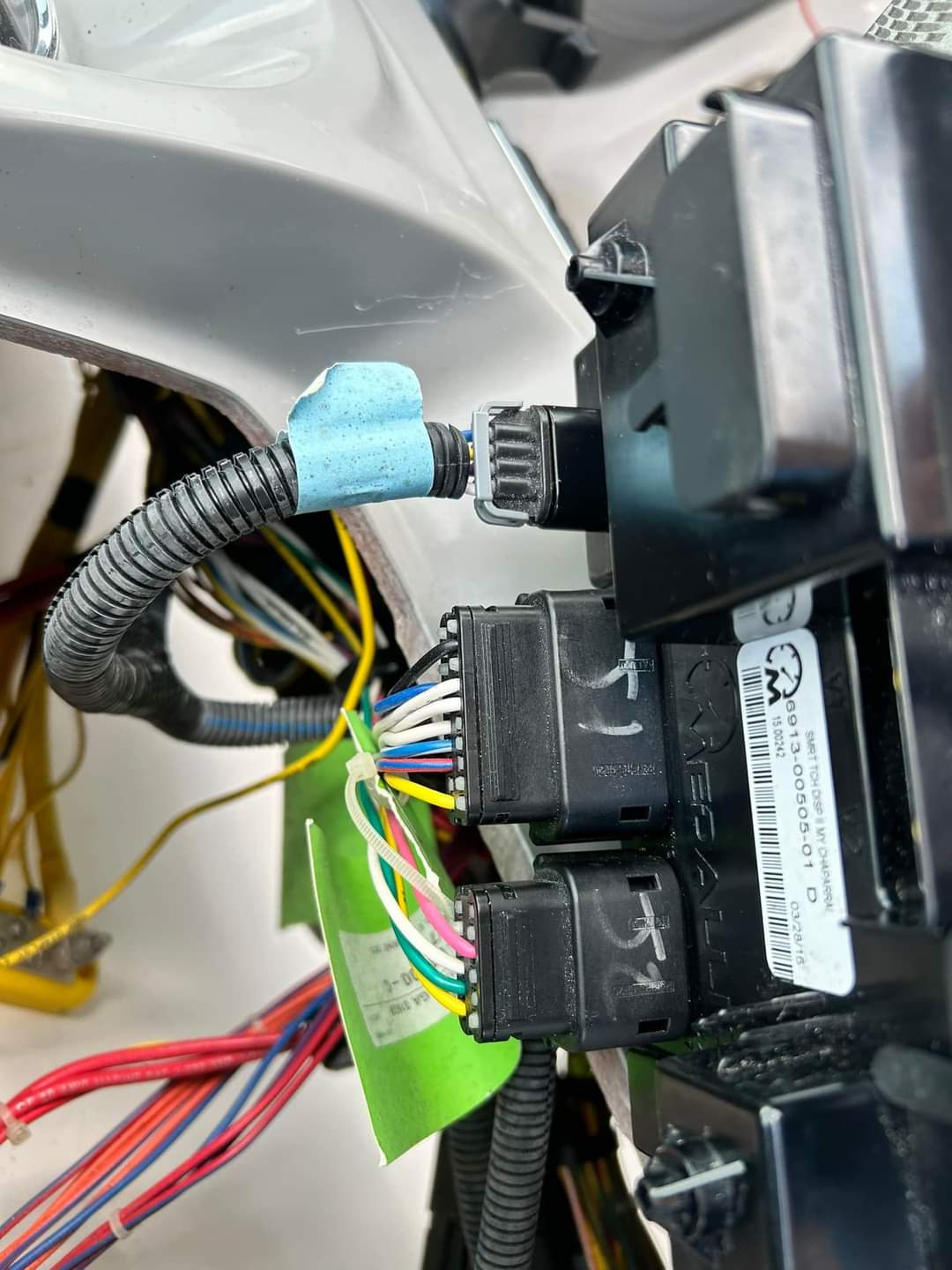

Swing bezel forward so you can access connectors. The connectors have a tab lock to squeeze before removal. Remove the connectors. The 7" VIper 2 models use only a single ethernet cat6 Cable. Shown below is the 6.5" Viper 1

Step 3

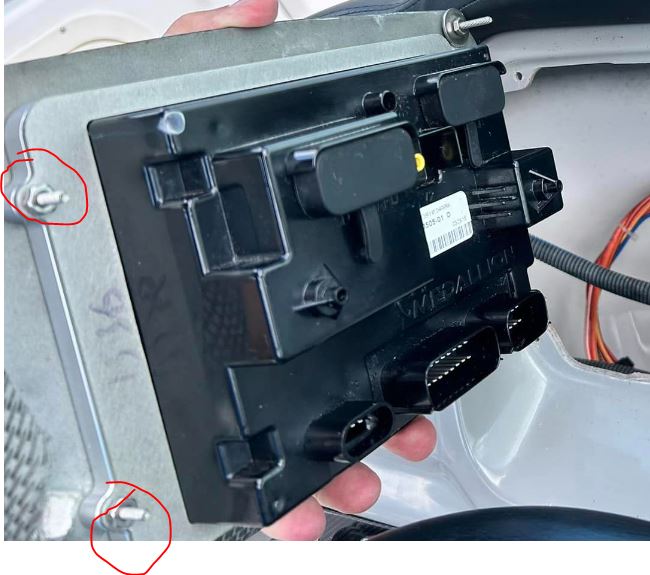

Remove 4x nuts that secure the aluminum plate , the display can now be removed.

2019-2024 Caymas Medallion Viper 2 Display Removal

Step 1

Look at back of display. Remove blue ethernet cable. Remove Two screws and washer. The display is now free.

2013-2017 Mastercraft HV700 Display Removal

image0 (19).jpeg__PID:a961e289-768f-43cc-ae8a-7e7d8b88c0df

image2 (3).jpeg__PID:ea03a961-e289-468f-a3cc-ae8a7e7d8b88

image1 (11).jpeg__PID:03a961e2-8976-4f63-8cae-8a7e7d8b88c0

dtop.JPG__PID:4c3089e2-1fc8-428f-b523-9661e3964626

Step 1

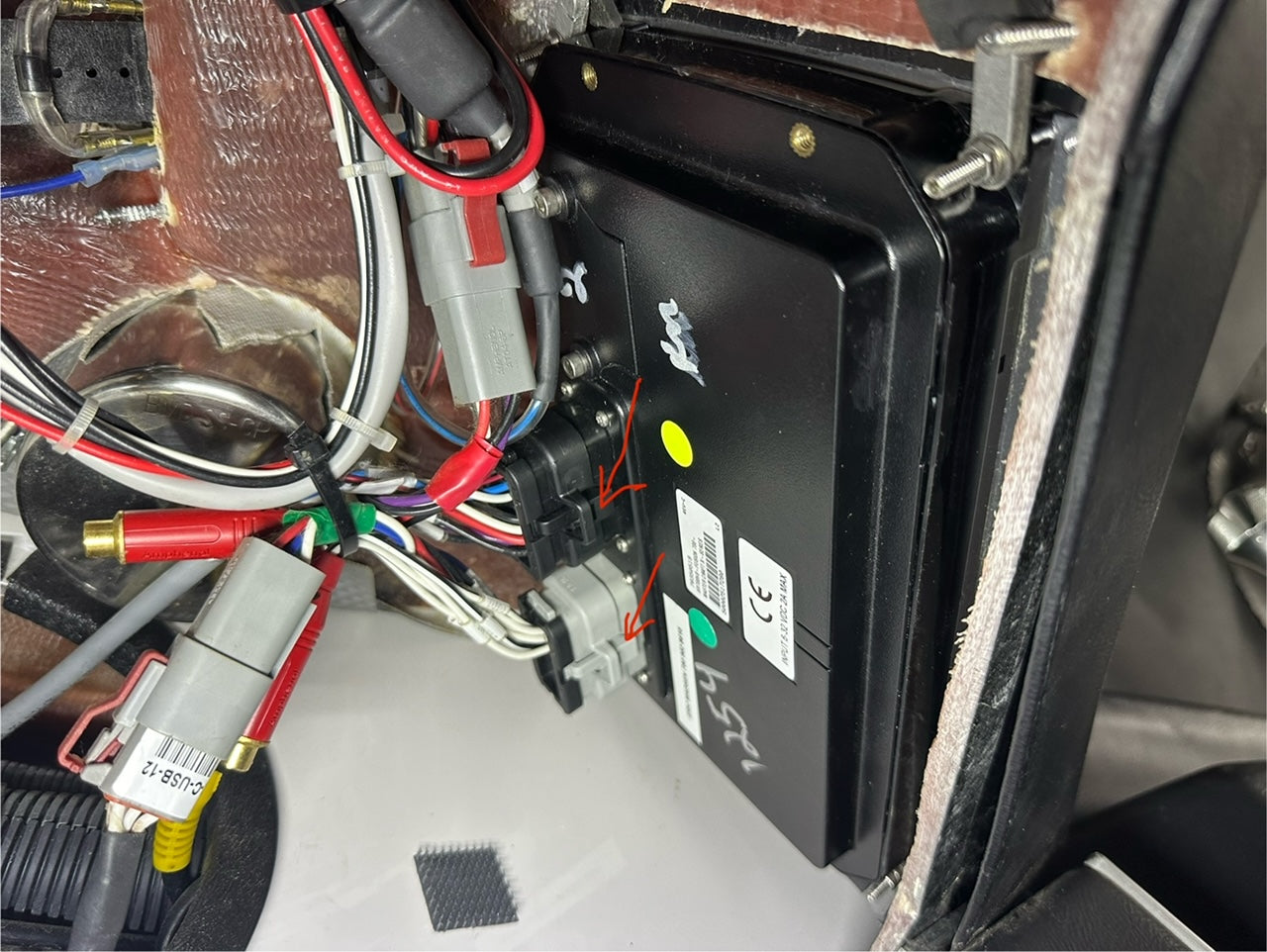

Turn off master switch and remove plugs on back of display

Step 2

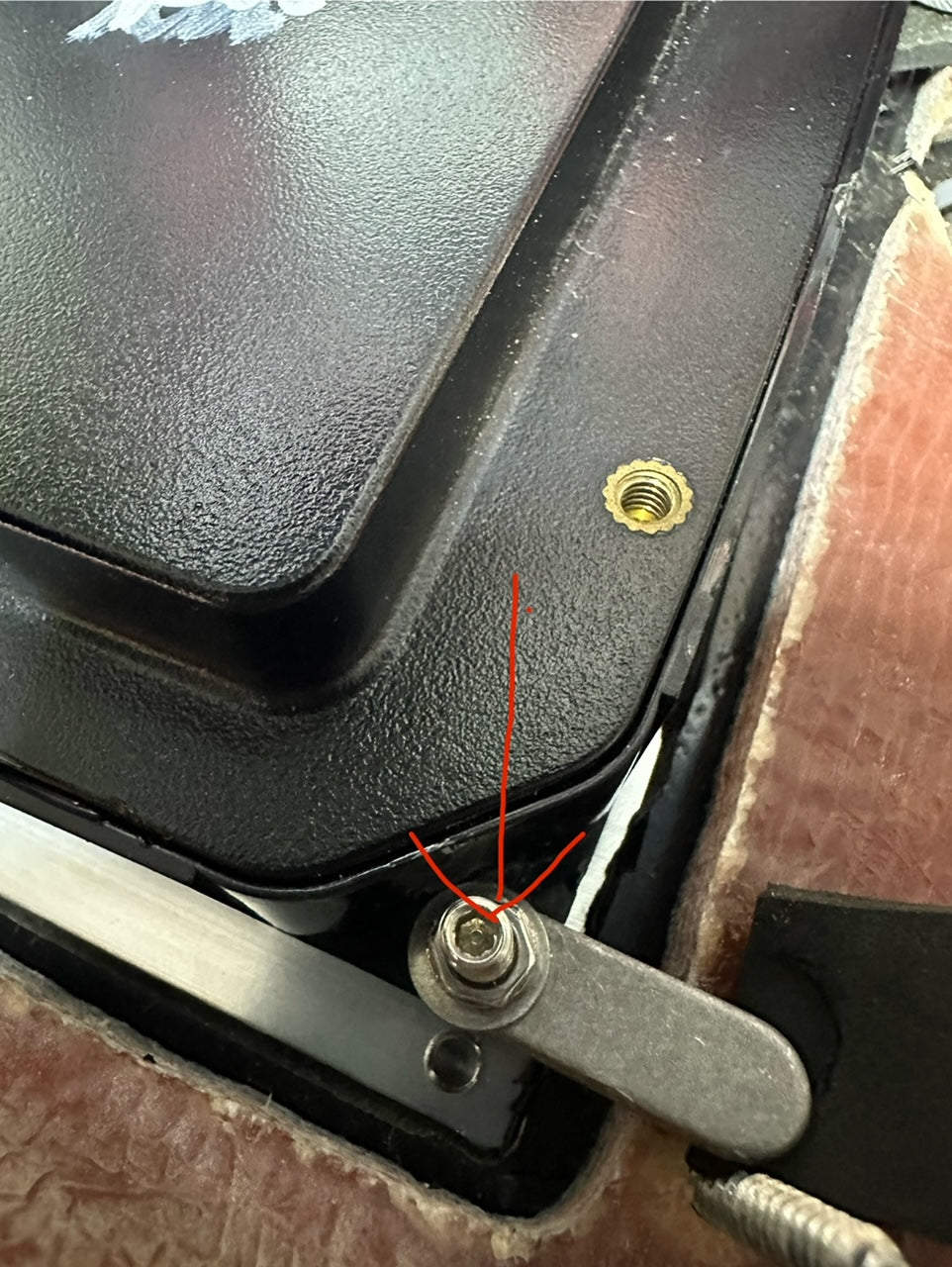

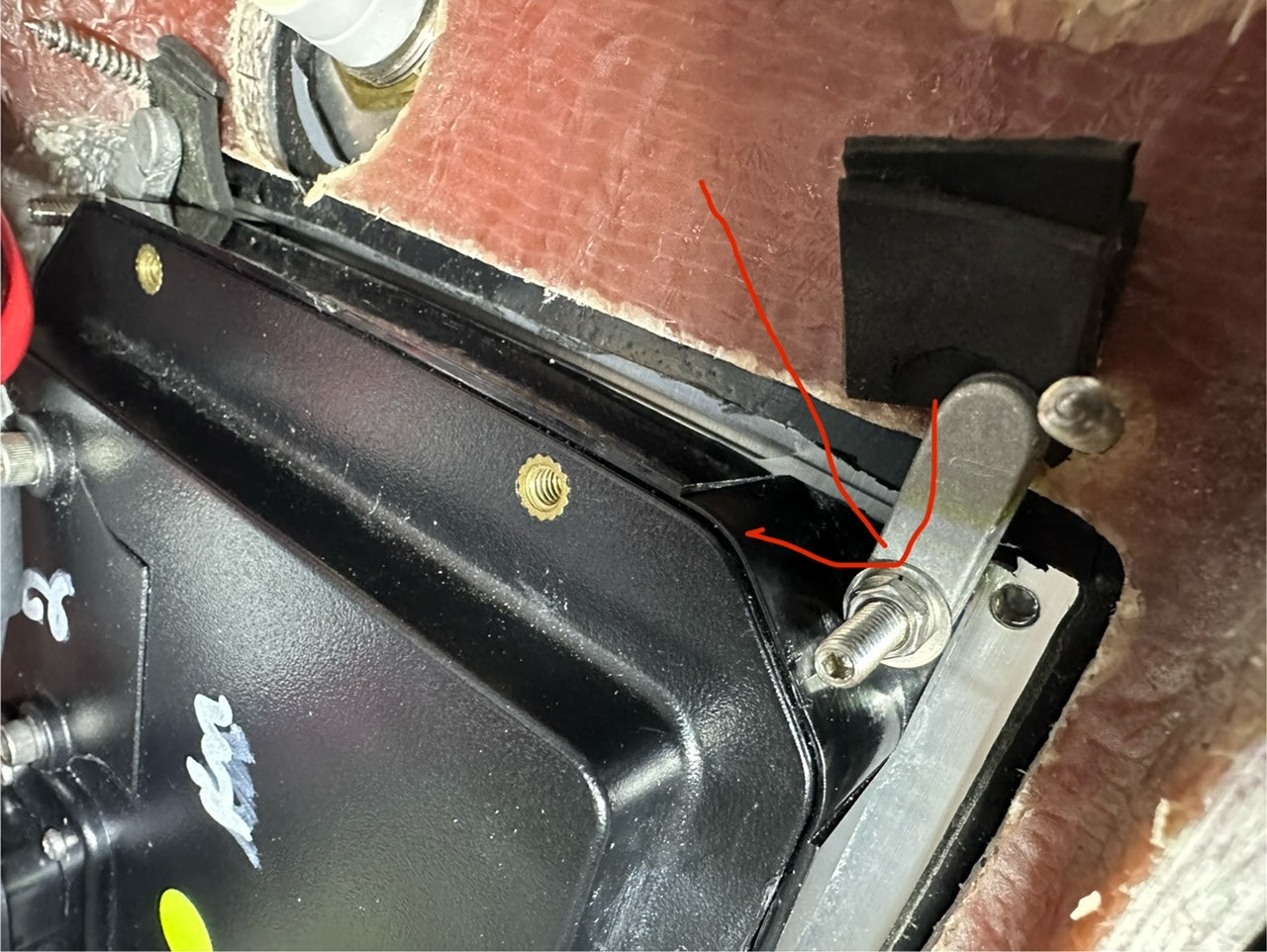

Use 1/4" deep socket to remove the nut holding the 3 clamps in place. Click for video.

Step 3

Remove clamps and remove display from the front. It may be a tight fit.

Step 4

Remove aluminum trim ring bezel from display with small hex wrench prior to sending it in for repair

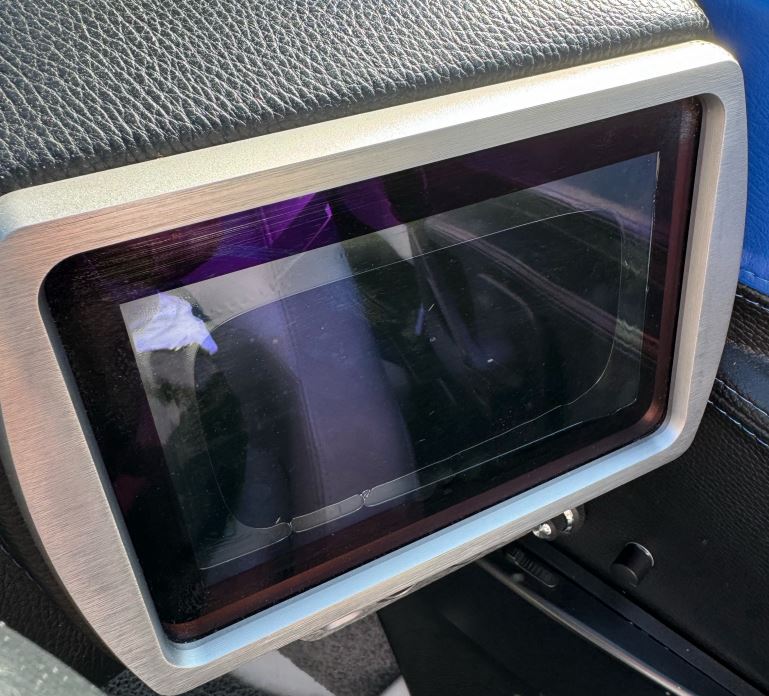

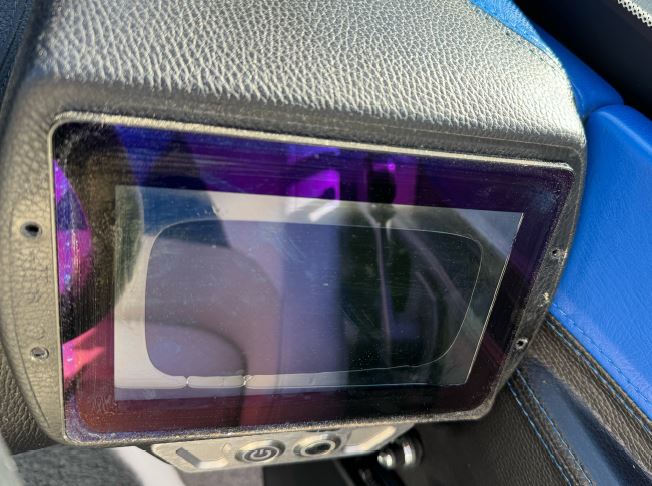

2015-2017 Malibu 7" Medallion Display Removal

3.JPG__PID:6d1f95e9-b61f-4d35-9df1-779b2e9c657c

4.JPG__PID:3b6d1f95-e9b6-4ffd-b5dd-f1779b2e9c65

Step 1

Applies to lower right Primary 7" Display

Step 2

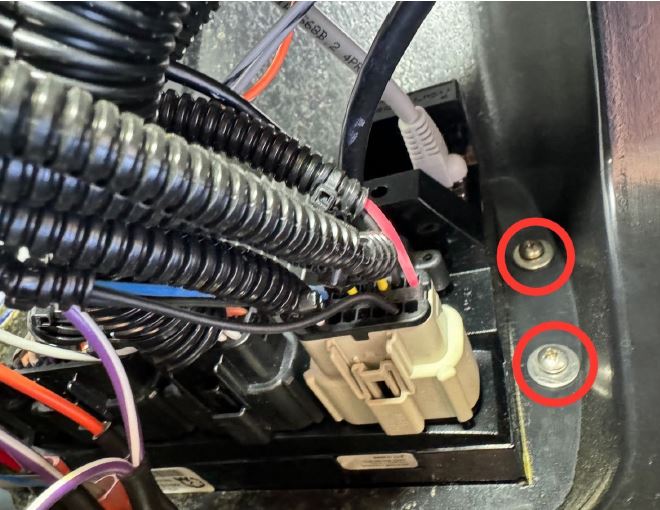

Look at the back of the screen, remove two phillips screws on left side

Step 3

Remove right side 2x phillips screws

Step 4

With 4x screws removed, the front brushed metal piece will come off

Step 5

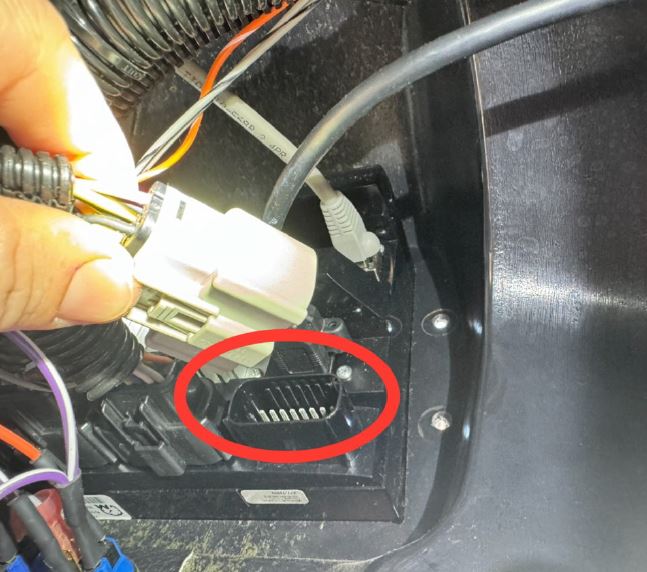

Press locking tabs on harness plugs and pull away from display to remove all plugs

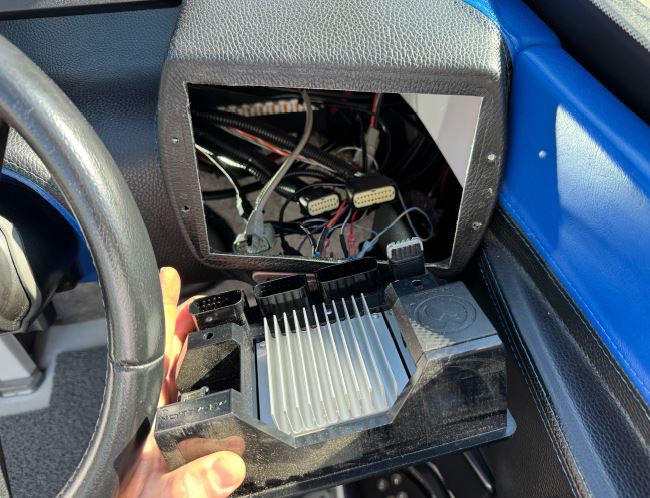

Step 6

All plugs removed from back of unit

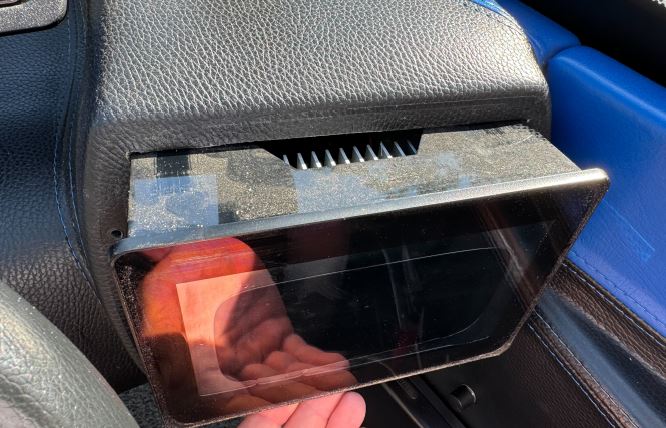

Step 7

Display will come out from the front

Step 8

Display removed, be sure to package it well if sending in for mail in service.

2017-2024 Nautique Linc Panoray Display Removal

Step 1

Pop off access panel

Step 2

Look inside access area, remove 4 phillips screws that secure screen to dash.

Step 3

Remove nuts securing the front vinyl piece. Loosen but do not remove wing nuts holding top vinyl piece on.

Step 4

Lift off front vinyl piece to provide clearance so screen can tilt forward.

Step 5

Tilt screen forward and remove USB connector, lift tabs and remove plugs and all connections.

Step 6

Display is now free and can be mailed in for restoration.

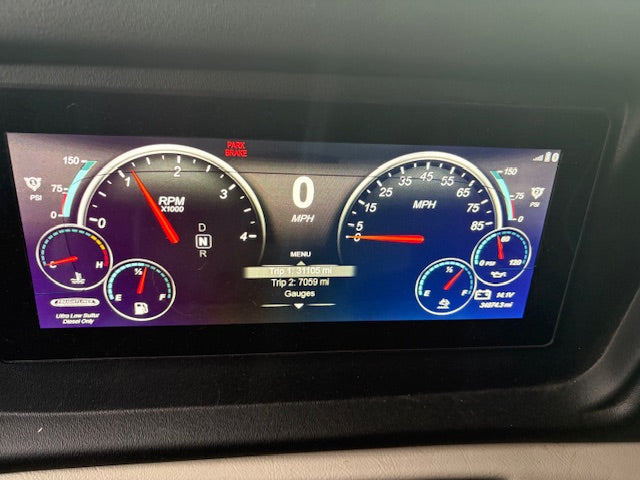

2019-2022 Freightliner Optiview Medallion Viper Screen Removal

IMG_20250625_080207.png__PID:42144be9-9fb6-464a-9b55-b72185f96002

IMG_20250625_080217.png__PID:dd42144b-e99f-4646-8a1b-55b72185f960

IMG_20250625_080223.png__PID:b64d48dd-4214-4be9-9fb6-464a1b55b721

IMG_20250625_080220.png__PID:48dd4214-4be9-4fb6-864a-1b55b72185f9

IMG_20250625_080226.png__PID:4d48dd42-144b-499f-b646-4a1b55b72185

IMG_2276.jpg__PID:fab3b043-3ca7-4b5d-ac0d-a0baf7a1362c

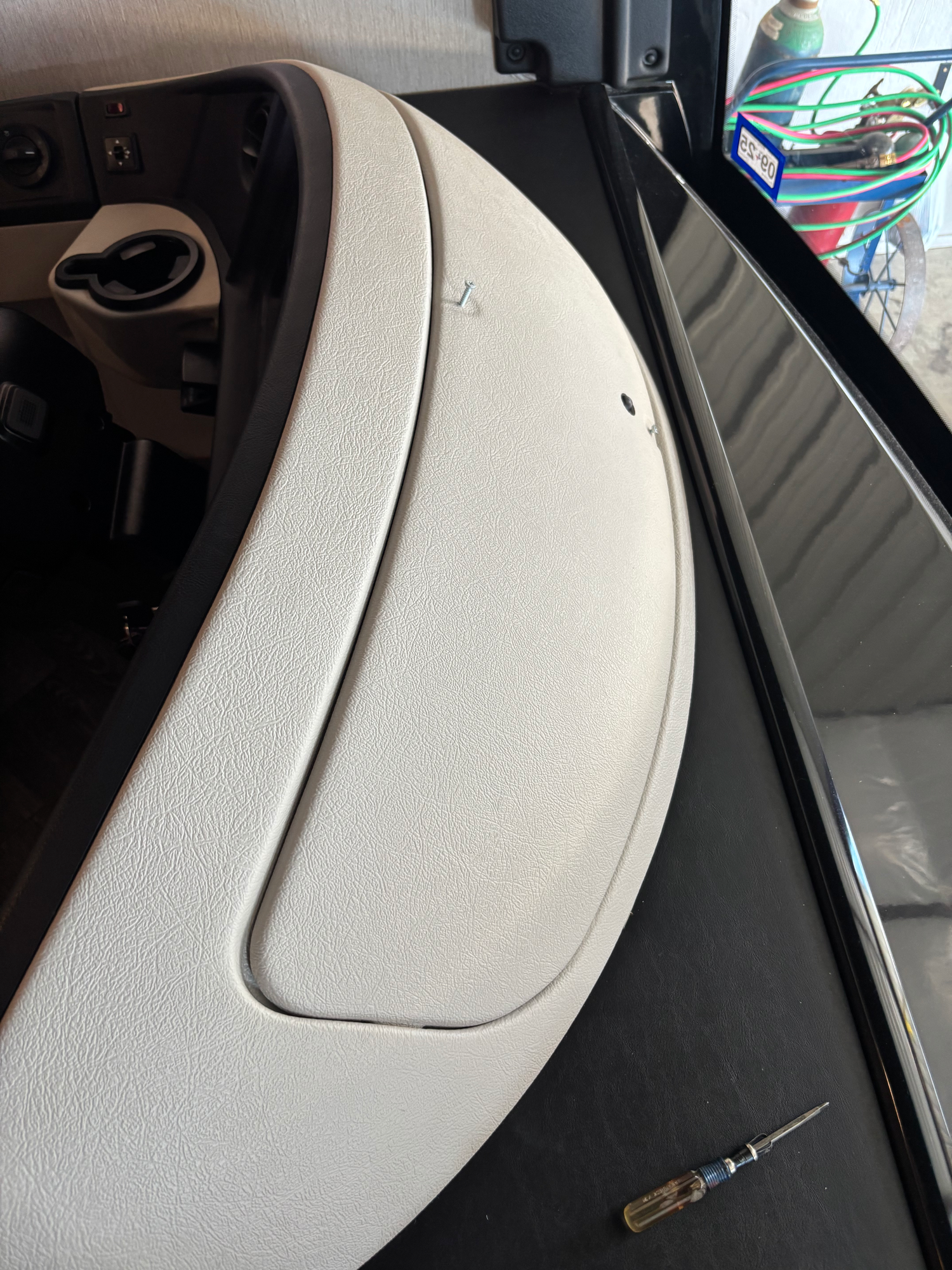

Remove Access Port on Dash

Remove phillips screws and lift off dash cover

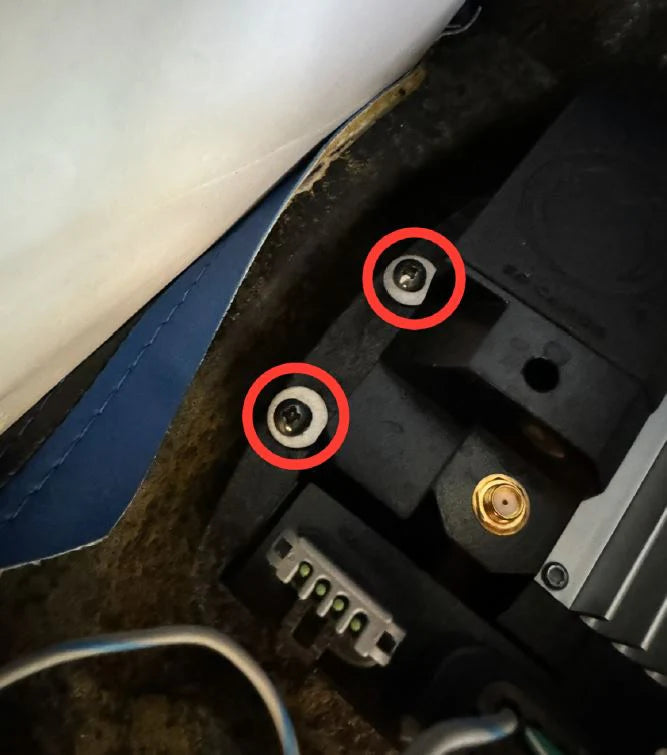

Remove 2x silver screws

There are 2 screws that secure the display to your dash, remove them

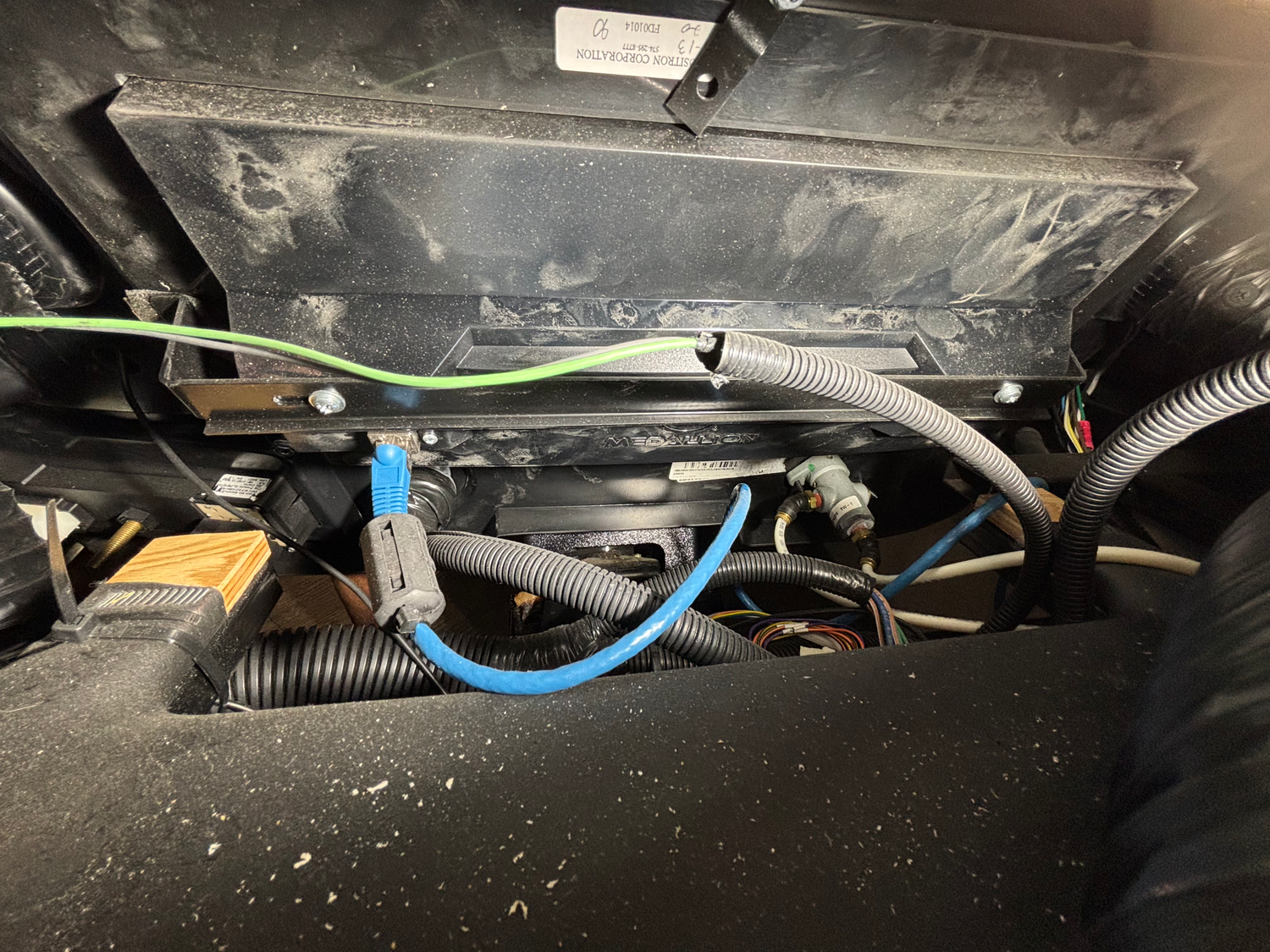

Remove ethernet cable

There is a blue ethernet cable into the bac,, press the locking tab and remove the cable. It is the same as a computer networking cable

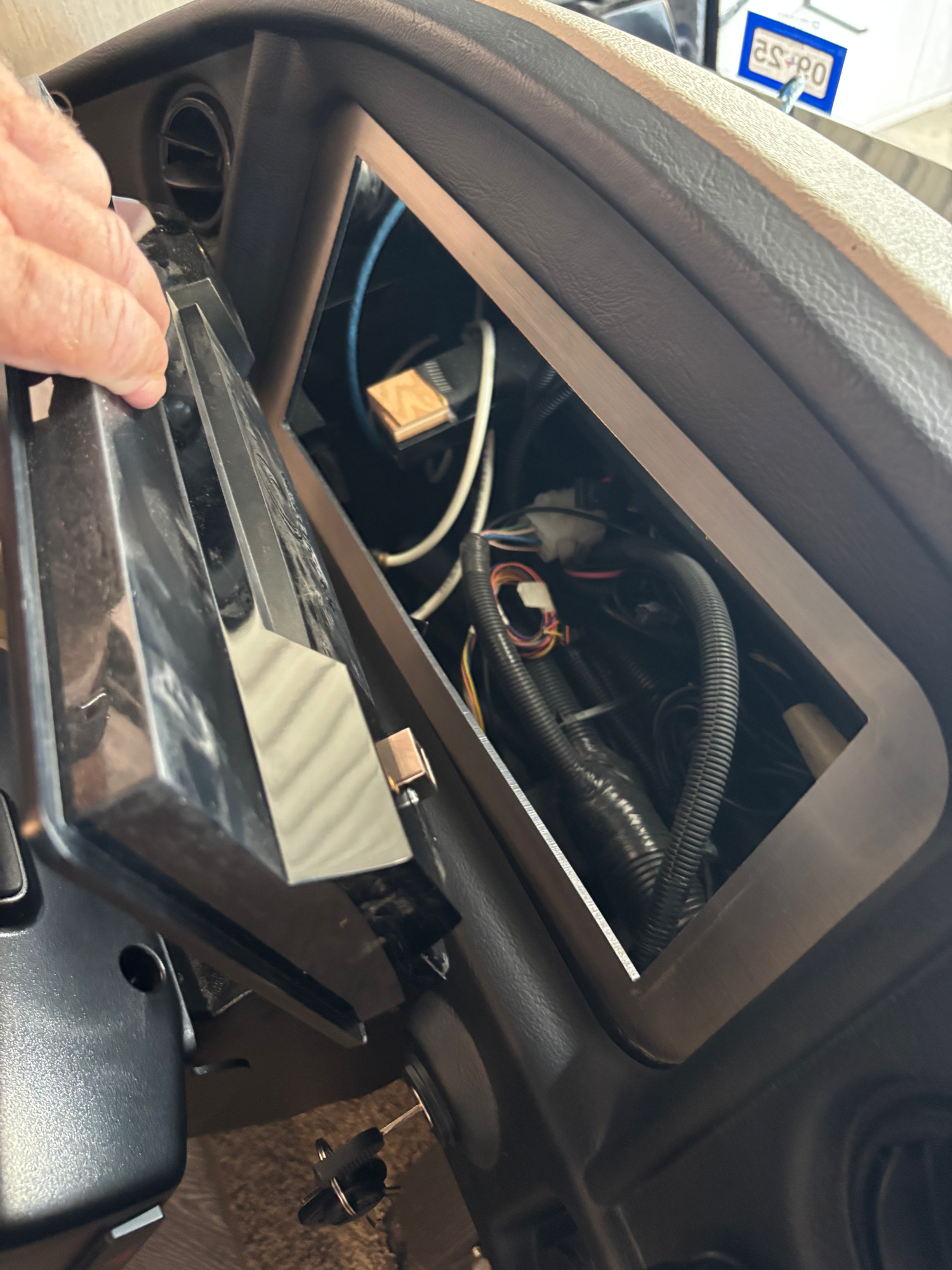

Remove display

Tilt the display forward and remove it from the dash. Important- DO NOT overtighten the screws when installing the new display. Finger tight only.

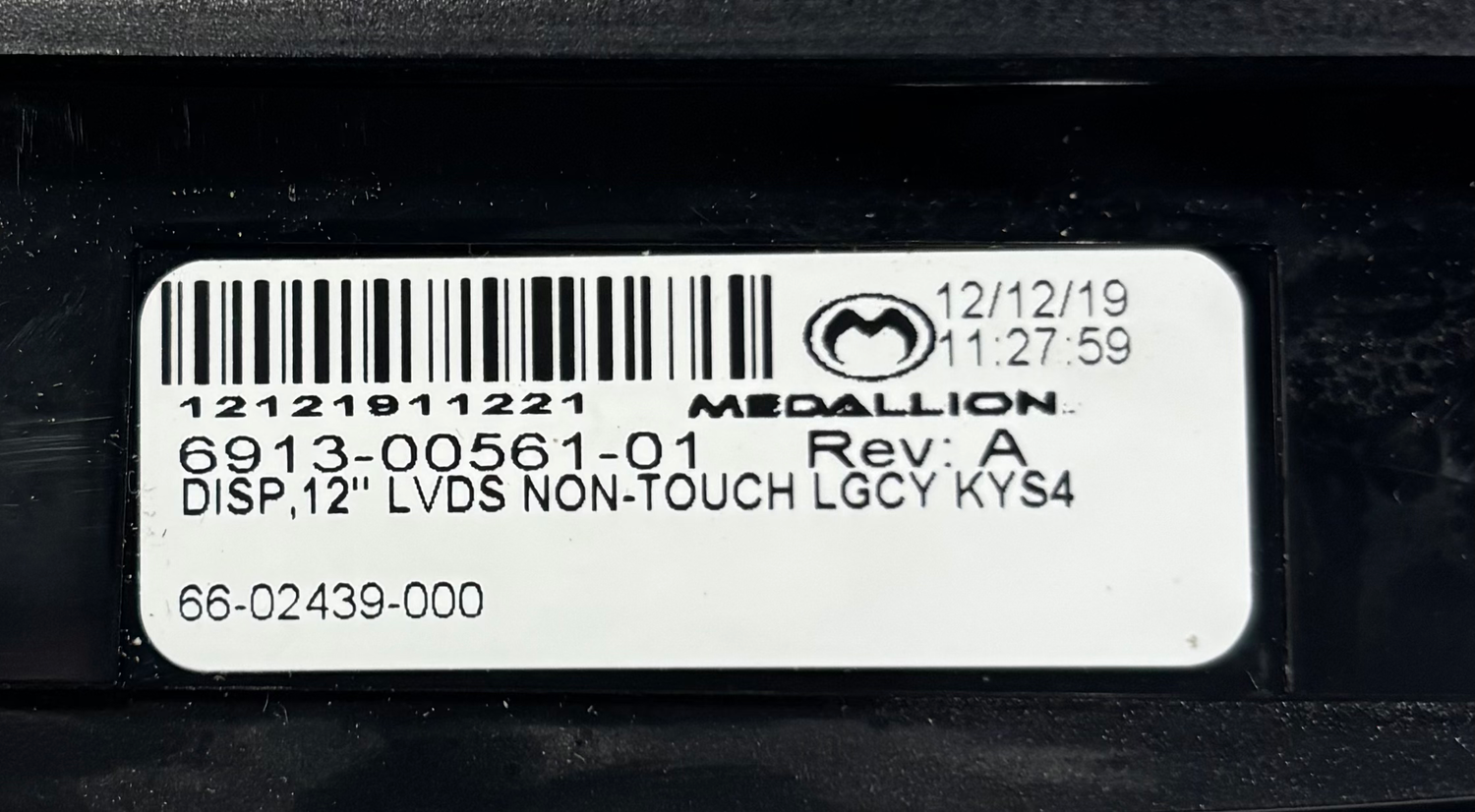

6913-00561-01

This is the non touch part number for Freightliner RV- 6913-00561-01 and it commonly delaminates or causes bubbles.

66-02439-000

This is the Freightliner part number, commonly over $5500 USD at the dealers.

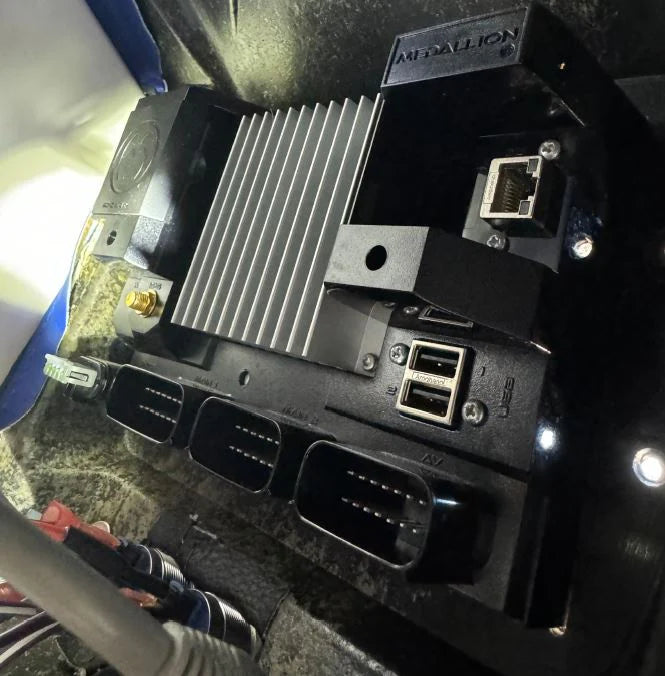

2018-2019 Medallion 7 inch Viper II Display Removal

WhatsApp-Image-2025-05-06-at-10.35.00-AM.webp__PID:9908b57e-86ed-47e4-b302-76f23db3d15c

Step 1

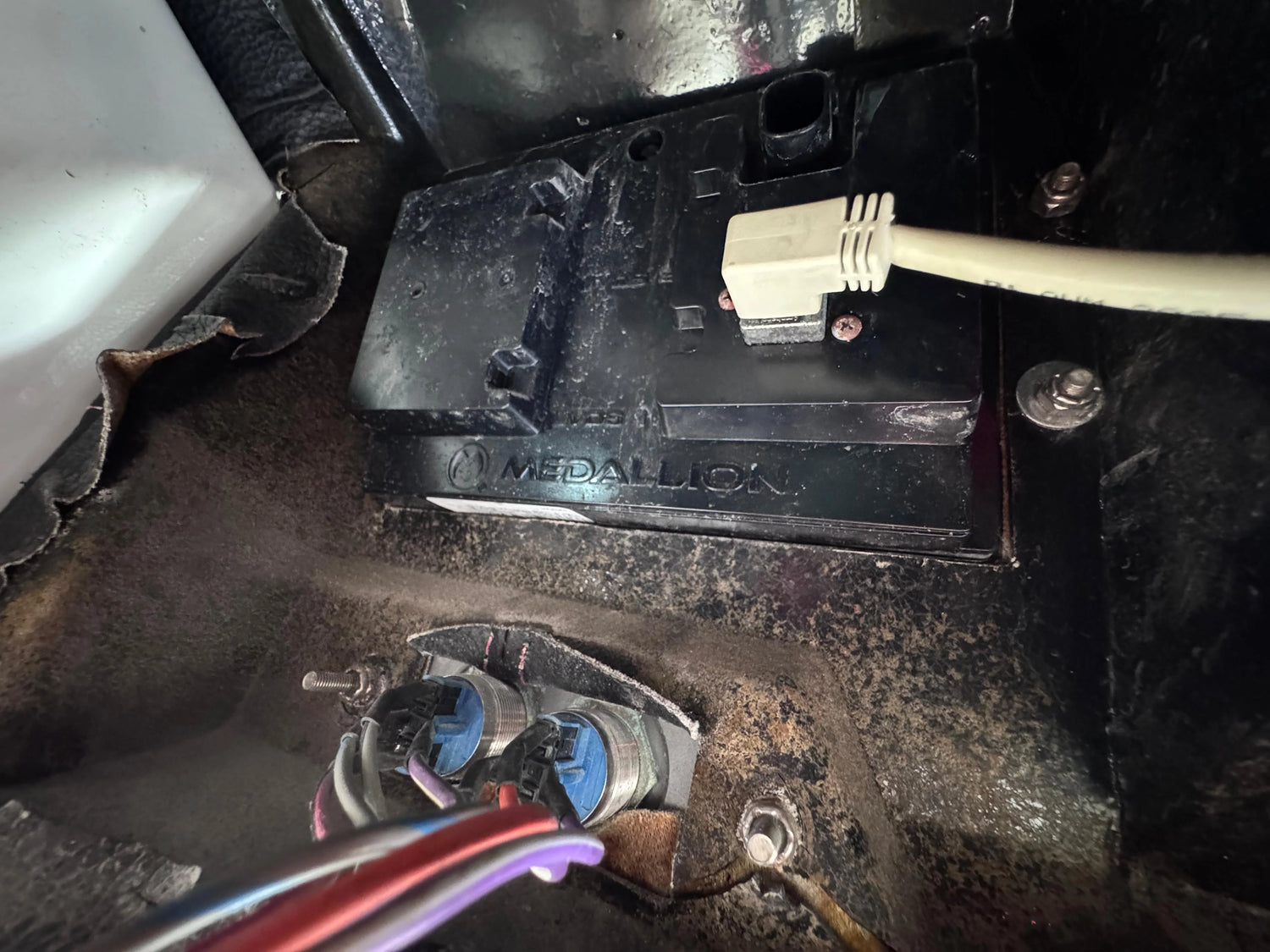

Reach into helm and remove 4 nuts and washers that secure metal trim bezel that clamps the display to the dash. Press locking tab on Ethernet CAT6 Cable and remove cable

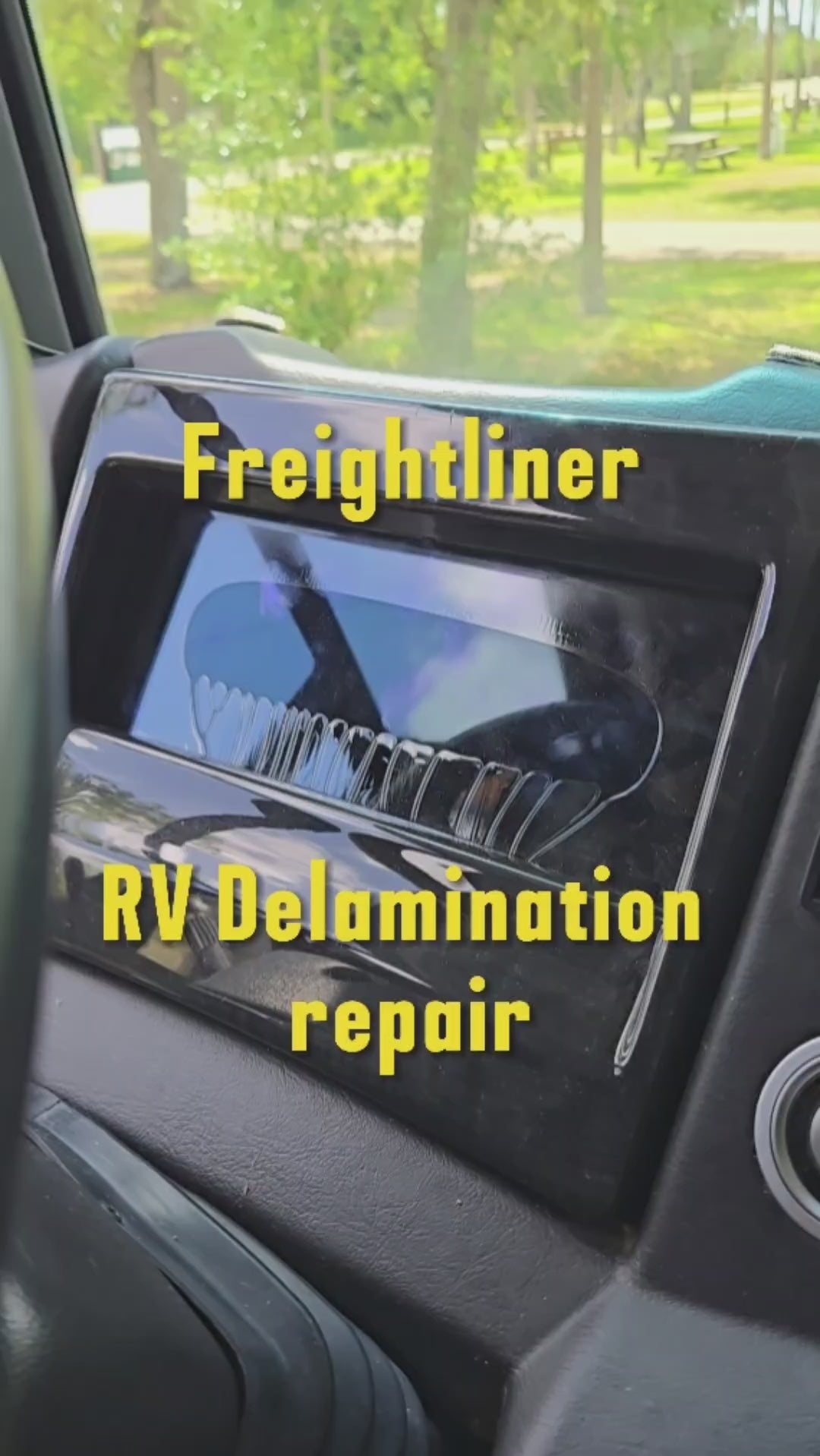

2019-2022 Newmar Freightliner How to remove optiview medallion screen

Link to Youtube video for optiview delamination replacement

John Deere 2630 GreenStar 3 LCD Touch Screen Replacement

Link to Youtube video for 2630 lcd touch screen replacment
