Mastercraft BIG display BLUE SCREEN issue, also for Tige Touch 1 and Maliview 10 button

By MTC Screens
3 min read

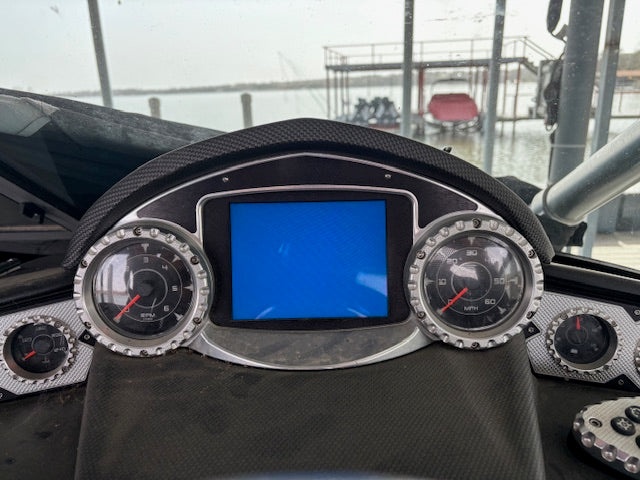

2013 Tige Touch 1 screen showing a blue display that is not working

Staring at a solid blue screen on your older Mastercraft BIG display, Tige Touch 1, or Malibu Maliview 10 button display? Here is what that blue screen is actually telling you, and how to track down the fix.

In this guide

  • Why a blue screen usually means your display is working
  • The full checklist to find your signal problem
  • The other failures we see on these displays, and what the 6C kit does fix
  • Why a blue screen is NOT fixed by the repair kit

See repair options for your display →

🔵

So What Is Going On?

A blue screen is a signal problem, not a dead display.

Blue screen issues on the older Mastercraft BIG display tend to be very common, and even more commonly misdiagnosed. The first thing to understand is that a blue screen usually means your display is working properly.

A blue display means it is waiting for a signal from the yellow coaxial cable that plugs into the back. The panel and backlight are doing their job, they simply have no video source coming in. This same behavior applies to every system that shares this design.

Displays this guide covers

Mastercraft BIGTige Touch 1Malibu Maliview 10 Button
ℹ️ Tip: Because the blue screen points to the signal path rather than the panel, it can frequently be traced back to a cable, connector, or module without replacing the display itself.
🛠️

What to Check First

Work through these before anything else.

🔌

Yellow Cable Connection

Confirm the yellow cable is plugged into the back of the display and into the blue module.

🟡

Cable Condition

Verify the RCA yellow coaxial cable is not corroded or damaged in any way.

🔧

Motherboard Connections

Make sure the connection has not been broken on the screen or on the Medallion blue module.

⚡

Power and Batteries

Test that the blue module has power and is functioning, then load test your batteries.

Back of the display showing the yellow coaxial cable and blue module connections to check
🔍

Other Issues We Frequently See

If your display has problems beyond the blue screen.

If your display has problems beyond a blue screen, we can help. These are the issues we frequently see on these displays:

🔅
Dim or dark backlightThe screen powers on but appears dim or nearly black as the backlight wears out.
🖼️
LCD burnA permanent ghosted image left on the panel from long-term static display.
🪟
Fading or cracked lensThe plastic lens fades, cracks, or peels over years of sun exposure.
Mastercraft BIG display with the backlight burned out, appearing dim or black

Here is a Mastercraft BIG display with the backlight burned out, appearing dim or black.

⚠️ Heads up: A blue screen is a separate signal issue from these panel and backlight problems. Work the checklist above first before assuming the display itself has failed.
🔧

The 6C Repair Kit

For backlight, LCD, and lens issues.

For a dim backlight, LCD burn, or a cracked and peeling lens, our MTC-6C kit replaces the defective OEM components with our updated design using brand new parts, for about half the cost of a new unit.

Mastercraft BIG display unit serviced by MTC Screens
⛔ Important: Blue screen issues are NOT fixed by the repair kit. The blue screen is a signal problem, so work through the checklist above first before considering the kit.

Still Stuck on a Blue Screen?

Send us a chat with your symptoms and a photo of the back of your display. We will help you track down the signal issue or get your display repaired in 3 days or less.

Get Help From MTC Screens
