2022 Yamaha Connext 7 Inch Gen 2 Screen Delaminating? The F4Y-U8K12-11 Watery Bubble Fix (2019-2024)
A watery bubble forming inside the glass is the signature failure on the 2019 to 2024 Yamaha Connext 7 inch Gen 2. The OEM optical adhesive separates under years of UV and heat, and the result spreads until the touch starts going with it. A new unit from Yamaha runs over $3,000. We replace the defective OEM LCD with our new anti-delamination parts for half the price.
In this guide
- What the Yamaha Connext 7 inch Gen 2 is and how it differs from Gen 1, plus the part number it carries
- The 4 OEM failure modes: watery bubble delamination, inaccurate touch, frozen zones, and dim backlight
- Why the OEM bond fails and how to remove the display
- How we replace the defective OEM LCD with brand new anti-delamination parts for half the dealer price

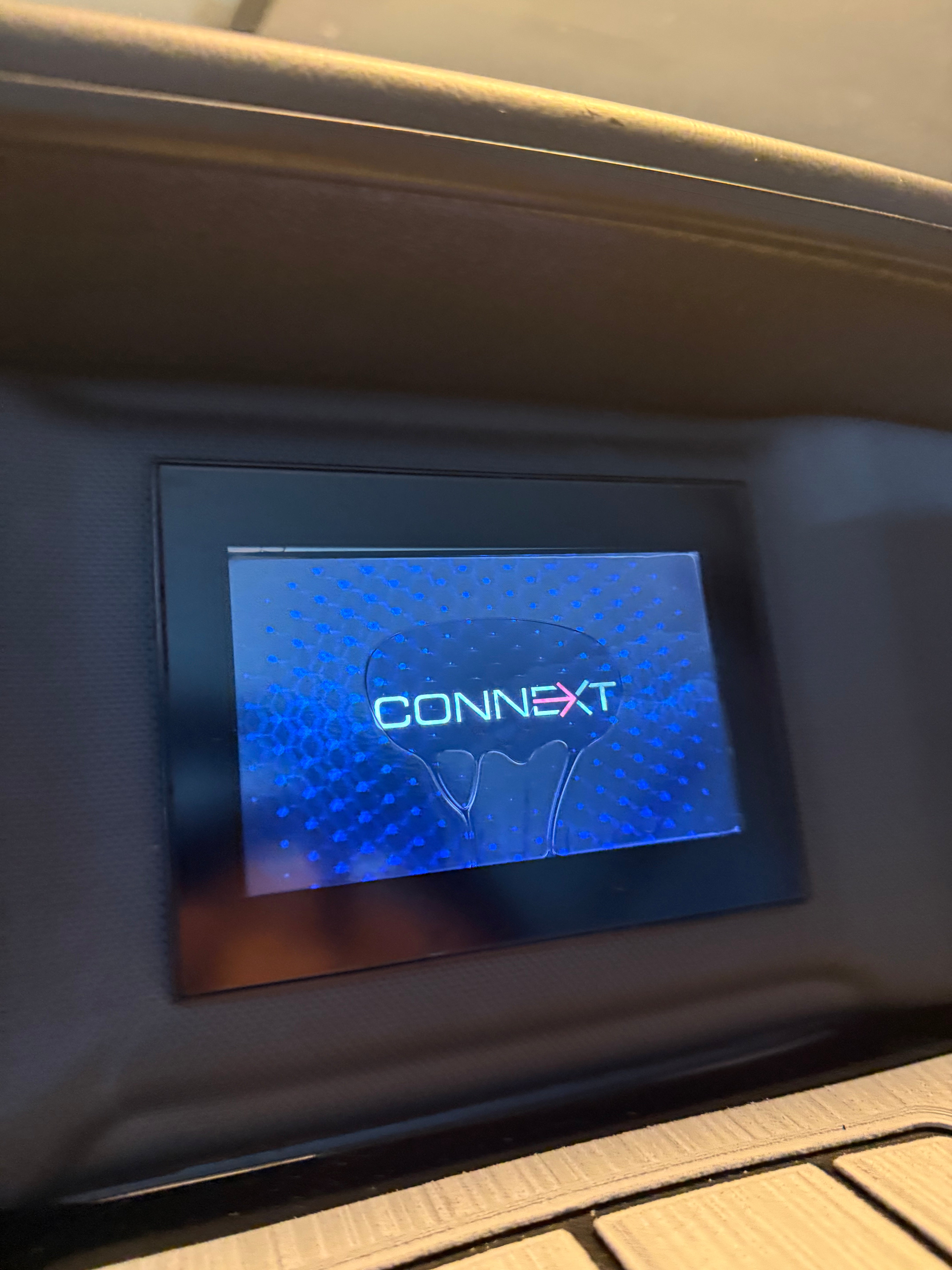

What Is the Yamaha Connext 7 Inch Gen 2?
2019 to 2024 Yamaha jet boats and WaveRunners
The Yamaha Connext 7 inch Gen 2 is the primary helm display on 2019 to 2024 Yamaha jet boats and WaveRunners. It replaced the Gen 1 unit with a larger, higher-resolution panel and an updated housing. It controls speed, RPM, fuel, depth, water temperature, GPS navigation, and audio through a single sunlight-readable touchscreen at the helm.
The Gen 2 is a different display from the original Gen 1 (which ran on earlier AR, SX, and 242 models) and uses different cabling and a different panel. If your boat is a 2019 or newer model, you have the Gen 2. The part number on the back confirms it.
Fits 2019 to 2024 Yamaha jet boats including the AR195, AR210, AR250, SX195, SX210, SX250, and WaveRunner models equipped with the Connext 7 inch Gen 2 display.
The 4 OEM Failure Modes
All caused by the same defective OEM bond
All four failures on the Gen 2 Connext trace back to one root cause: the OEM optical adhesive between the cover glass and the LCD panel breaking down. The watery bubble is always the first visible sign.

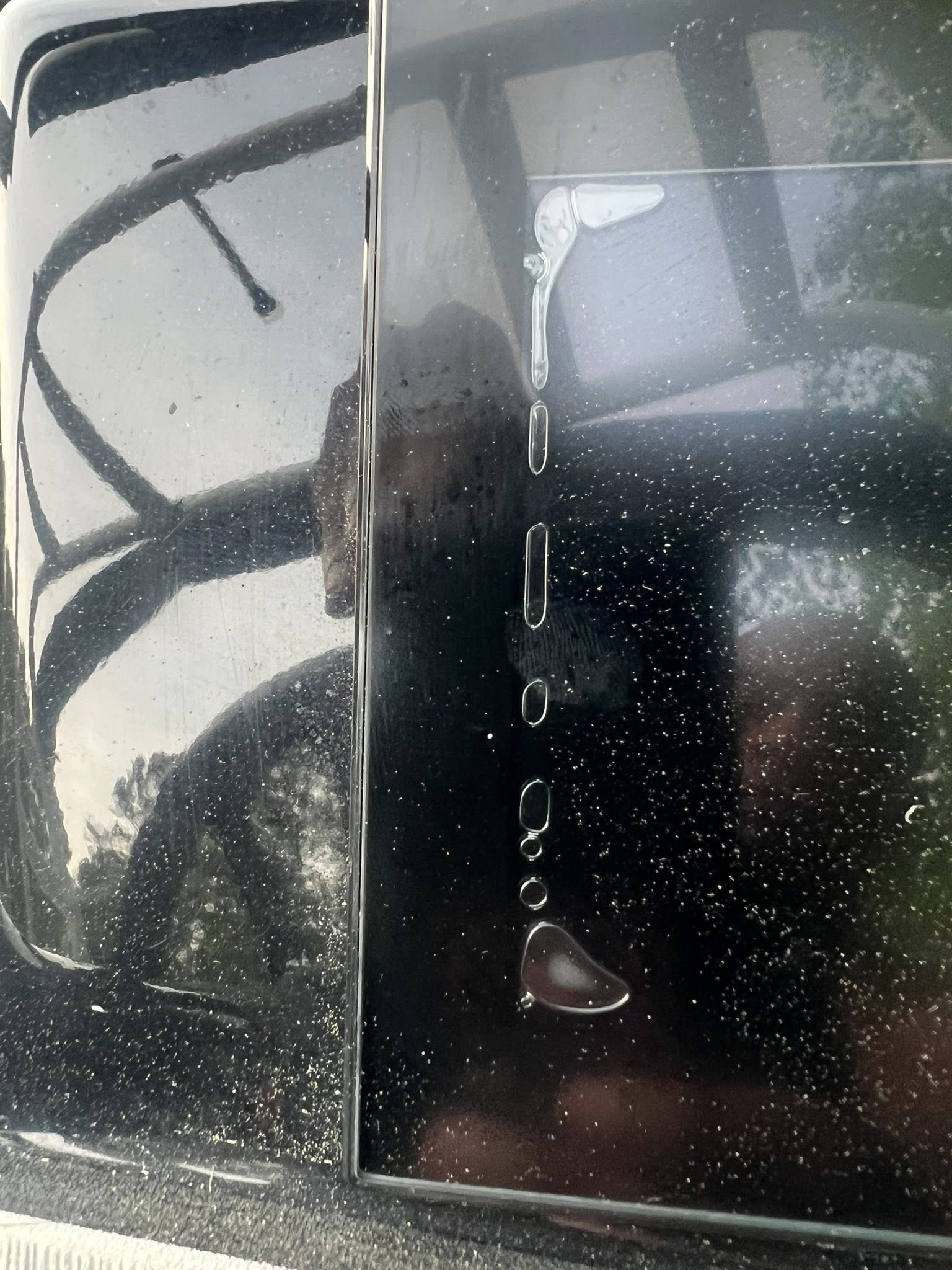

💧 Watery Bubble Inside the Screen
The signature Gen 2 failure. The OEM optical adhesive separates and a watery, cloud-like bubble forms behind the glass. It starts small and spreads across the panel as the bond continues to break down.
👆 Inaccurate or Offset Touch
As the adhesive separates, it shifts the digitizer layer out of alignment with the LCD beneath it. Taps land slightly off-target, and controls become unreliable as the separation worsens.
❌ Frozen or Unresponsive Zones
Parts of the touch grid stop registering entirely. Speed, depth, or audio controls become unreachable mid-session. Often appears in the same zones where the bubble has spread furthest.
🌓 Dim or Washed-Out Backlight
The display becomes difficult to read in direct sun. Once moisture enters through the compromised OEM seal, the backlight components can begin to degrade alongside the LCD panel.
🎦 Real 2022 Yamaha Connext Gen 2 Repair
A 2022 Yamaha jet boat Connext 7 inch Gen 2 in our shop with a watery delamination bubble spreading behind the glass. Watch the diagnosis and the finished result with our new anti-delamination LCD installed.
Why the OEM LCD and Bond Fail
The defective design, not user error
The Gen 2 Connext is a well-built display in most respects, but the OEM optical bonding between the LCD and the cover glass was not designed for what a Yamaha helm sees year after year:
- Direct UV all season, Yamaha jet boats run open-bow helms with no shade. UV breaks down the OEM adhesive polymer chains season after season.
- Heat cycling, the display heats under use and cools overnight. Each cycle stresses the bond at the interface layers. Over five to seven years, micro-voids form and grow into the visible watery bubble.
- Marine humidity and spray, once the edge seal starts to open, moisture has a path inward. It accelerates the delamination and begins to attack the backlight and LCD connections.
- Vibration, hull and engine vibration works the internal layers loose over thousands of hours on the water.
How to Remove the Display
Straightforward from the front, about 20 minutes
The Gen 2 Connext comes out of the Yamaha dash from the front as a complete unit. No dash disassembly, no heat gun, no specialty tools.
- 1Disconnect the battery before any work at the helm.
- 2Remove the mounting fasteners holding the display housing to the dash. Standard socket, set the hardware aside to reuse.
- 3Disconnect the wiring harness from the back of the display. The Gen 2 uses a different connector layout from the Gen 1, so note which plugs go where.
- 4Slide the display forward out of the dash with the bezel attached as one complete unit.
- 5Pack it safely and ship with the prepaid UPS label emailed after checkout.
Real Customer Result
2022 Yamaha jet boat, Gen 2 watery bubble fixed
A 2022 Yamaha owner shipped in his Gen 2 Connext with a watery delamination bubble that had spread to cover most of the lower panel. Yamaha dealer pricing on a new Gen 2 unit was quoted at over $3,000. We replaced the defective OEM LCD with our new anti-delamination parts and returned the display within 3 business days.
Why Our Parts Outlast OEM
Brand new anti-delamination LCD, not the same component that failed
We do not install the same OEM LCD that produced the watery bubble in the first place. Every Gen 2 Connext repair uses brand new components with an updated design specifically to eliminate the failure mode built into the original:
Fix Yours for Half the Dealer Price
Mail-in repair, brand new parts, returned in 3 business days
A new Gen 2 Connext from a Yamaha dealer runs over $3,000. We replace the defective OEM LCD with brand new anti-delamination parts for half that price, with a 3 day or less turnaround.
Mail-In Repair
Ship with a prepaid UPS label. We replace the defective OEM LCD with our new anti-delamination parts, all brand new components, test, and return within 3 business days. Half the dealer price. Pay after repair.
Order Gen 2 Repair →Free Diagnostic
Send a photo of your display and your year and model. We will confirm it is the Gen 2, identify the failure, and recommend the right path. No commitment required.
Start a Chat →Replace the defective OEM LCD. Fix it right.
Fix Your Yamaha Connext Gen 2 for Half the Price
We replace the defective OEM LCD with brand new anti-delamination parts. Half the Yamaha dealer price. Back in 3 business days. All settings preserved. No dealer visit required.
Order Connext Gen 2 Repair →
