2020 Yamaha Connext 7 Inch Gen 2 Screen Discolored? The F4Y-U8K12-10 Leaking Glue Fix

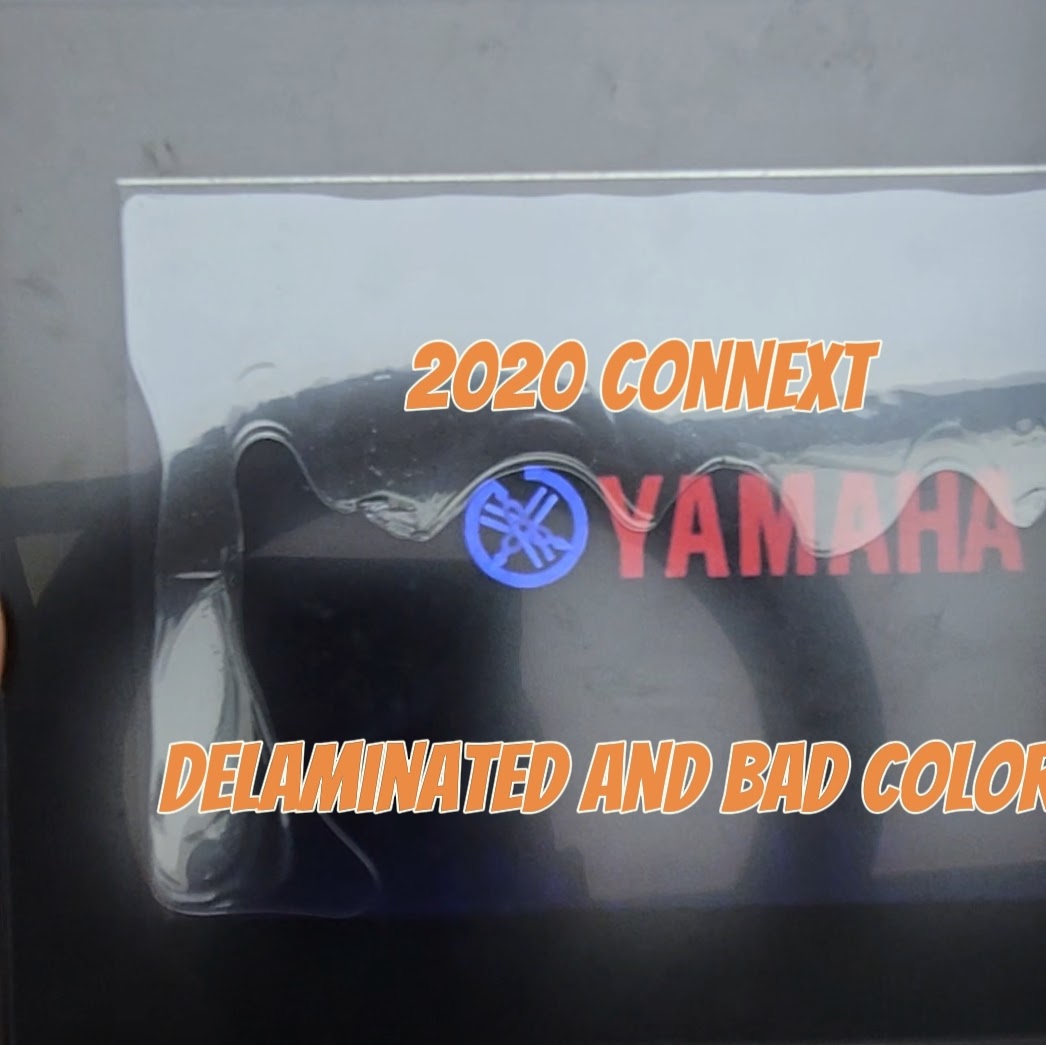

That discoloration you see behind the glass on your 2020 Yamaha Connext 7 inch Gen 2 is not a software glitch. It is the OEM optical adhesive breaking down, leaking onto the LCD panel, and staining it permanently. Once the glue reaches the LCD the discoloration is there to stay until the panel is replaced. Here is what is happening and how to fix it.
In this guide
- What the 2020 Yamaha Connext 7 inch Gen 2 is, and the part numbers it carries (F4Y-U8K12-10 and 78350843)
- The 4 failure modes: LCD discoloration from leaking glue, touch inaccuracy, frozen zones, and dim backlight
- Why the OEM adhesive leaks onto the LCD and what it does when it gets there
- How we replace the defective OEM LCD with brand new anti-delamination parts for half the dealer price
What Is the 2020 Yamaha Connext Gen 2?
The 7 inch helm display on 2019 to 2024 Yamaha jet boats
The 2020 Yamaha Connext 7 inch Gen 2 is the primary helm display on 2019 to 2024 Yamaha jet boats and select WaveRunners. It is the second generation of the Connext platform, updated from the earlier Gen 1 with a larger panel, improved resolution, and a revised housing design. It controls speed, RPM, fuel, depth, water temperature, GPS, and audio from a single touchscreen.
The Gen 2 uses different cabling and a different internal panel from the Gen 1. If your Yamaha is a 2019 or newer model, you have the Gen 2. The part number on the rear housing confirms it. This specific unit carries two numbers: the Yamaha PN F4Y-U8K12-10 and the Murphy platform number 78350843.
Fits 2019 to 2024 Yamaha jet boats including the AR195, AR210, AR250, SX195, SX210, SX250, and compatible WaveRunner models equipped with the Connext 7 inch Gen 2 display.
The 4 OEM Failure Modes
All caused by the same defective OEM adhesive
The leaking OEM adhesive is the root cause of every failure on this display. Once it separates and starts spreading, it stains the LCD and sets off a cascade of problems that get progressively worse.
🎨 LCD Discoloration from Leaking Glue
The signature failure on this unit. The OEM optical adhesive separates, leaks inward, and physically stains the LCD panel. The resulting discoloration is permanent and spreads as more adhesive breaks down. No cleaning or software fix removes it.
👆 Inaccurate or Offset Touch
As the adhesive leaks and the layers separate, the digitizer shifts out of exact alignment with the LCD. Taps register in the wrong location, controls become unreliable, and repeated pressing is required to get a response.
❌ Frozen or Unresponsive Zones
Sections of the touch grid stop registering entirely. Speed, audio, or depth controls become unreachable mid-session. Dead zones tend to appear in areas where the adhesive has leaked most heavily.
🌓 Dim or Washed-Out Backlight
Once moisture has a path through the compromised seal, the backlight components begin to degrade alongside the LCD. The display becomes progressively harder to read in direct sun.
🎦 Real 2020 Yamaha Connext Gen 2 Repair
A 2020 Yamaha jet boat Connext 7 inch Gen 2 in our shop with LCD discoloration from leaking OEM adhesive. Watch the diagnosis and what the display looks like with our new anti-delamination LCD installed.
Why the OEM Adhesive Leaks Onto the LCD
The defective OEM design, not user error
The Connext Gen 2 is built with an optically bonded LCD stack: cover glass, a glass digitizer, and the LCD panel bonded together with a clear optical adhesive. Under normal indoor conditions this adhesive is stable. Under a Yamaha jet boat helm it is not:
- Direct UV all season, open-bow Yamaha helms get full sun for hours every day. UV gradually breaks down the OEM polymer chains in the adhesive until it loses its grip and begins to migrate inward toward the LCD.
- Heat cycling, the display heats up during every session and cools overnight. Each cycle expands and contracts the layered materials at slightly different rates, opening micro-gaps at the bond interface that allow the degraded adhesive to flow.
- Marine humidity, once the edge seal starts to give, humidity accelerates the adhesive breakdown and gives it a path to spread further across the LCD surface.
- Vibration, hull and engine vibration over thousands of hours works the internal layers loose, widening the gaps the adhesive leaks through.
How to Remove the Display
About 20 minutes, standard hand tools
The Gen 2 Connext comes out of the Yamaha dash from the front as a complete unit. No heat gun, no dash disassembly, no specialty tools required.
- 1Disconnect the battery before any work at the helm.
- 2Remove the mounting fasteners from the rear of the dash with a standard socket. Set hardware aside to reuse.
- 3Disconnect the wiring harness from the back of the display. Snap a photo before pulling any connectors.
- 4Slide the display forward out of the dash with the bezel attached as one complete unit.
- 5Pack safely and ship with the prepaid UPS label emailed after checkout.
Real Customer Result
2020 Yamaha jet boat, LCD discoloration from leaking glue fixed
A 2020 Yamaha owner shipped in his Gen 2 Connext (F4Y-U8K12-10) with discoloration spreading across the lower half of the LCD from leaking OEM adhesive. Yamaha dealer pricing on a new Gen 2 unit ran over $3,000. We replaced the defective OEM LCD with our new anti-delamination parts and returned the display within 3 business days.
Why Our Parts Outlast OEM
Brand new anti-delamination LCD, not the component that leaked
We do not replace the leaking OEM adhesive with the same adhesive that failed. Every Gen 2 Connext repair uses brand new components designed to eliminate the leak at the root:
Fix Yours for Half the Dealer Price
Mail-in repair, brand new parts, returned in 3 business days
A new Gen 2 Connext from a Yamaha dealer runs over $3,000. We replace the defective OEM LCD with brand new anti-delamination parts for half that price.
Mail-In Repair
Ship with a prepaid UPS label. We replace the defective OEM LCD with our new anti-delamination parts, all brand new components, test, and return within 3 business days. Half the dealer price. Pay after repair.
Order Gen 2 Repair →Free Diagnostic
Send a photo of the rear housing and your year and model. We will confirm the PN, identify the failure, and recommend the right path. No commitment.
Start a Chat →Replace the leaking OEM LCD. Fix it right.
Fix Your 2020 Yamaha Connext Gen 2 for Half the Price
We replace the defective OEM LCD with brand new anti-delamination parts. Discoloration gone. Half the Yamaha dealer price. Back in 3 business days. All settings preserved.
Order Connext Gen 2 Repair →
