2017 Nautique G23 Touchscreen Frozen and Peeling? The 12.3 inch LINC Panoray Fix
The 12.3 inch LINC Panoray at the helm of the 2017 Nautique G23 develops a very common failure as it ages. The touch goes frozen and unresponsive, and the bonding starts peeling and delaminating around the border. Here is what is happening behind the glass, and the two repair paths that get you back on the water in days.
In this guide
- What the 12.3 inch LINC Panoray is, and the part numbers it covers
- The 4 failures we see most: frozen touch, a peeling delaminated border, sunburned LCD, and bad colors
- Why the touch grid and the edge bond fail first, and how to remove the display
- Two ways to fix it, mail-in or a zero-downtime refurbished exchange
What Is the 2017 Nautique LINC Panoray?

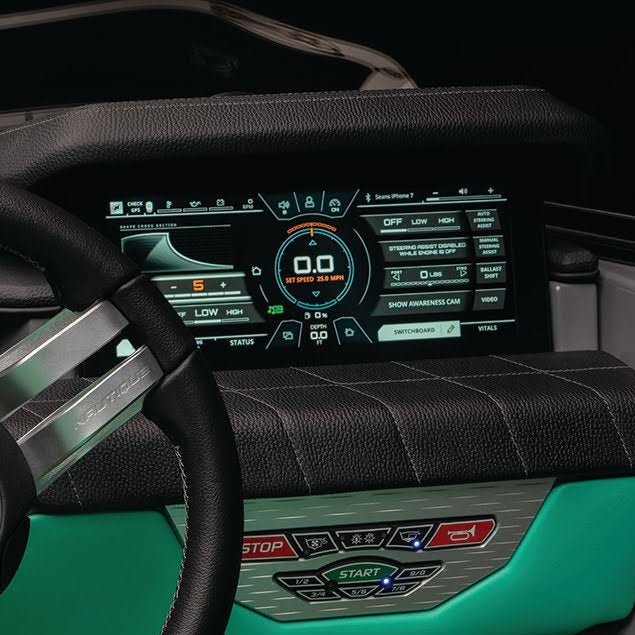

The 12.3 inch Nautique LINC Panoray touchscreen
The 2017 Nautique G23, along with the rest of the G-series, GS-series, and S-series that year, ships with the 12.3 inch LINC Panoray at the helm. It is a large, sunlight-readable touch display made by Murphy / Enovation Controls, branded by Nautique as the LINC (Linked Information & Command) system. The Panoray runs everything: ballast, surf settings, audio, lighting, depth, speed, fuel, and engine data.
The same physical display platform also appears on select Mastercraft and Tigé models and a number of larger pontoons. With Nautique-specific firmware and integration into the LINC bus, your boat needs the Nautique-spec version of the display.
Compatible Part Numbers (Nautique LINC Panoray)
The Nautique LINC Panoray fits 2017 to 2025 Nautique models except the 2024 to 2025 P-Series. The standard part is 170118. 2017 models with Polk audio use 170118A. Your 2017 G23 takes the standard 170118.
The 4 Most Common Failures
What goes wrong on the 12.3 inch Panoray
On the 2017 G23, the Panoray tends to fail in the touch grid and the edge bond. Sometimes you see delamination, sometimes the screen looks perfect and simply stops responding. Here is what owners report most often:
🚫 Frozen and Unresponsive Touch
The signature failure. Taps stop registering, the boot warning will not clear, and the helm locks up. The capacitive touch sensor has failed even though the rest of the boat is healthy.
🌊 Peeling, Delaminating Border
Visible peeling where the cover glass meets the bezel, often with a watery cloud creeping inward. A sign the seal is compromised and moisture is starting to enter.
☀️ Sunburned LCD
Permanent dark blotches or burn-in across the display after hundreds of hours in direct sun. Once visible, the damage needs a panel replacement.
🎨 Bad Colors and Stripes
Discolored zones, vertical stripes, or color bars. Often shows up after the touch grid fails, as the LCD ribbon connections degrade under the same conditions.
🎦 Real 2017 Nautique G23 Panoray Repair
A 2017 Nautique G23 LINC Panoray in our shop, frozen at the helm with a peeling, delaminating border. Watch the diagnosis and what the restored unit looks like.
Why the Touch Grid and Bond Fail First
It is the capacitive sensor and the edge seal, not the boat computer
The LINC Panoray is built around a large 12.3 inch capacitive touch grid, essentially a fine mesh of transparent conductive wires running across the cover glass. Each wire reads a tiny change in capacitance when your finger lands on it, and the controller turns those changes into a coordinate. The grid sits behind a cover glass that is optically bonded to the panel.
On the 2017 Nautique helm, both the touch grid and that edge bond tend to break down over time. Several factors contribute:
- Direct UV at the open helm, Nautique helms get full sun for hours every day. UV gradually breaks down the protective layers above the touch sensor and the adhesive at the edges, which is where the peeling tends to start.
- Heat concentration in the lower bezel, the bottom portion of the display sits closest to the heat-producing components inside the housing. Sustained heat tends to degrade the sensor traces in that zone faster than the rest of the panel.
- Marine humidity and condensation, once the edge seal starts peeling, moisture has a path inward. That accelerates the delamination and can begin to damage the LCD and the touch connections.
- Vibration from the hull and tower, Super Air Nautique boats produce significant tower and hull vibration. Persistent vibration can weaken solder joints and traces inside the display assembly.
How to Remove the Panoray Display
Standard hand tools, about 20 minutes at the helm
The 2017 Nautique Panoray comes out of the dash from the front, with the display housing intact as a single unit. No dash disassembly required.
- 1Disconnect the boat battery before any work at the helm. Pull the negative terminal to prevent any inrush to the LINC bus.
- 2Access the back of the dash and locate the mounting fasteners for the Panoray housing, typically four to six screws on the rear face of the bezel.
- 3Remove the mounting fasteners with a standard socket. Reuse the hardware on installation, so set it aside.
- 4Disconnect the wiring harness from the back. The Panoray uses a single keyed multi-pin connector for the LINC bus, plus a power feed.
- 5The display slides forward out of the dash with its bezel attached. Pack it as a complete unit for shipping, no need to disassemble further.
Real Customer Result
2017 Nautique G23, frozen and peeling Panoray fixed
A 2017 G23 owner shipped in his Panoray after the touch went fully frozen and the border had started peeling and clouding over. Nautique dealer pricing on a new LINC display was quoted at $4,500+ with a multi-week back-order. He sent the unit in for repair, and we returned it within 3 business days with a new touch grid, fresh optical bonding, and resealed edges. The boot warning cleared on the first tap.
Why Our Repair Outlasts OEM
What the Panoray rebuild upgrades on the original
We do not just replace the failed touch grid with the same part. We rebuild it with components engineered to outlast the original. Every Panoray restoration includes:
How to Fix Yours
Two repair paths, mail-in or a zero-downtime exchange
You have two repair paths on the 2017 Nautique Panoray. Most owners pick mail-in for the lower cost, but if you need the boat operational immediately, the refurbished exchange option gets you running same-day.
Mail-In Repair
Ship with a pre-paid label. We replace the touch grid, rebuild the optical bond, reseal the edges, test, and return within 3 business days. From $1,900. Pay after repair.
Order Mail-In →Refurbished Exchange
Receive a fully refurbished Panoray, install it same-day, then send your core back for partial credit. The fastest path back to the water. From $3,000 with the core credit returned.
Order Refurbished →
Free Diagnostic
Send a photo of your display and your year and model. We will confirm it is a Panoray, identify the failure, and recommend the right repair path. No commitment.
Start a Chat →Ready to get back on the water?
Fix Your G23 LINC Panoray
Mail in your 2017 Nautique G23 Panoray display. Back in 3 business days with a new touch grid, upgraded bonding, resealed edges, and a brighter LED. All settings preserved.
Order Panoray Repair →
