2016 Regal Screen Ghost Touching or Delaminating? The 7 inch HV700 Fix
The 7 inch Murphy HV700 at the helm of the 2016 Regal develops a very common failure as it ages. The bonding delaminates into visible lines, and the touch starts ghosting and going unresponsive. Here is what is happening behind the glass, and how to get the original unit rebuilt for far less than a replacement.
In this guide
- What the 7 inch HV700 display is, and the part numbers it covers
- The 4 failures we see most: delaminated lines, ghost touch, frozen or unresponsive touch, and LCD defects
- Why the touch controller and the bond break down, and how to send yours in
- What the rebuild upgrades, and how to fix yours with mail-in repair
What Is the 2016 Regal HV700 Display?
The 7 inch Murphy HV700 helm touchscreen
The 2016 Regal uses the 7 inch Murphy HV700 touch display at the helm, also sold as the HV700HB. It is built by Murphy / Enovation Controls and was fitted across a wide range of premium boats during this era. It runs your gauges, engine data, audio, lighting, and most of the dash controls through a single glass panel.
When it starts failing, the boat itself is usually healthy. What breaks down is the touch controller and the optical bond inside the display. The expensive boards, the housing, and the wiring are typically fine, which is why the original unit can be rebuilt instead of replaced.
Compatible Part Numbers (Murphy HV700)
The HV700 platform also appears on Mastercraft, Supra, Centurion, Tige, Nautique LINC 2.0, Premier, Bayliner, Harris, and South Bay models from roughly 2012 to 2018. The number on the back of your Regal unit confirms the exact fitment.
The 4 Most Common Failures
What goes wrong on the 7 inch HV700
On the 2016 Regal, the HV700 tends to fail in the bond and the touch controller. Delaminated lines usually show up first, and ghost touch and dead zones tend to follow. Here is what owners report most often:
🌊 Delaminated Lines

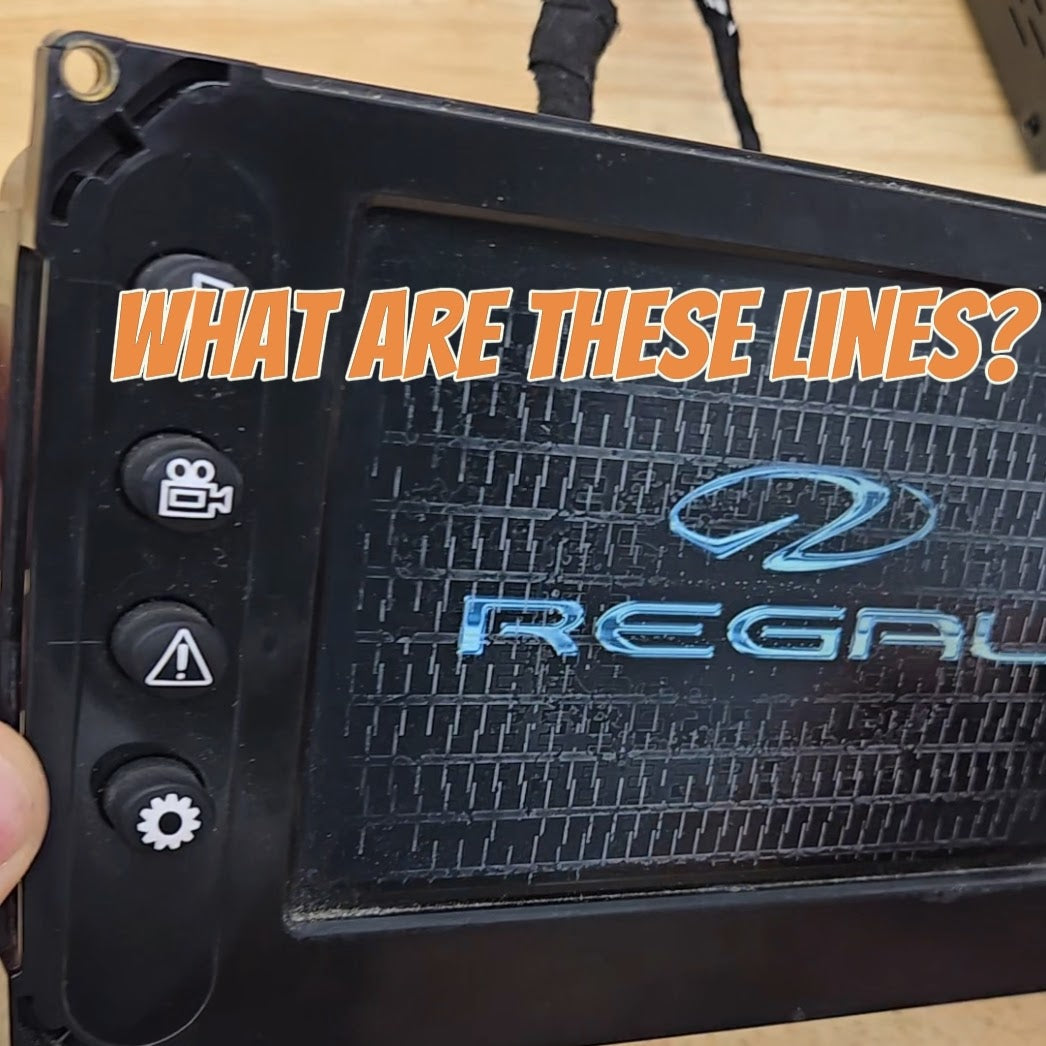

The optical bond separates into visible lines or streaks across the glass. It tends to start at an edge and spread, and once the seal opens up, moisture can begin to work its way in.
🔮 Ghost Touch and Phantom Press
The screen registers presses no one is making. Menus open on their own, settings change, and the cursor jumps. As the touch controller ages it floods with false signals.
⏱ Frozen or Unresponsive Touch
The opposite problem. You tap and nothing happens. Specific zones go dead, or the entire touch surface stops responding. Often shows up alongside the ghosting.
🔴 LCD Defects and Dim Backlight
Black spots, stripes, fading, random colors, or a backlight too dim to read in sunlight. These tend to appear as the panel ages alongside the bond failure.
🎦 Real 2016 Regal HV700 Repair
A 2016 Regal HV700 in our shop with delaminated lines and ghost touch at the helm. Watch the diagnosis and what the rebuilt display looks like.
Why the HV700 Fails
The touch controller and the bond, not the boat computer
The HV700 was a strong display when it was new, but it was not built for what a boat helm faces season after season. The same set of forces tends to defeat it over five to seven years:
- Direct UV at the open helm, full sun for hours every day breaks down the adhesive bond and the protective layers above the touch sensor.
- Heat cycling and humidity, the unit heats under use and cools in storage, and the repeated expansion stresses the bond until it separates into lines.
- Vibration, engine and wave vibration works the touch panel and its connections loose over time.
- Aging touch electronics, the original touch controller becomes noise sensitive as it ages, which is what shows up as ghost touch and dead zones.
How to Remove and Send In the Display
Standard hand tools, mail-in service
The HV700 needs special equipment to separate the glass from the panel, so this one is a mail-in repair rather than a DIY kit. Removing it from the dash is straightforward with hand tools.
- 1Disconnect the boat battery before any work at the helm.
- 2Remove the mounting fasteners holding the display housing to the dash. Set the hardware aside to reuse.
- 3Disconnect the wiring harness from the back of the unit.
- 4Slide the display forward out of the dash with its bezel attached, and pack it as a complete unit.
- 5Ship it in with the prepaid UPS label we email after checkout.
Real Customer Result
2016 Regal, ghosting and delaminated HV700 fixed
A Regal owner sent in an HV700 that had delaminated into lines across the screen and was ghost touching at the helm. The OEM HV700 is obsolete, and replacements have been quoted in the thousands when they can be sourced at all. He shipped the unit in, and we returned it within 3 business days with a new LCD and digitizer assembly, fresh anti-delamination bonding, and a brighter backlight.
Why Our Rebuild Outlasts OEM
What the HV700 repair upgrades on the original
Replacing an OEM HV700 with another OEM HV700, if you can even find one, means paying for the same digitizer that already failed. Our rebuild upgrades the parts that fail at the root:
How to Fix Yours
Mail-in repair, returned in 3 business days
The HV700 is a mail-in repair. Ship us the unit, we rebuild it with the upgraded assembly, and send it back ready to install.
HV700 Mail-In Repair
Ship with a pre-paid UPS label. We open the unit, replace the LCD and digitizer assembly, reseal it watertight, test, and return within 3 business days. From $2,200. Pay after repair.
Order HV700 Mail-In →Free Diagnostic
Send a photo of your display and your year and model. We will confirm it is an HV700, identify the failure, and recommend the right path. No commitment.
Start a Chat →Stop the ghost touch and delamination
Fix Your Regal HV700
Mail in your 2016 Regal HV700 display. Back in 3 business days with a new digitizer, anti-delamination bonding, a brighter LED, and every setting preserved.
Order HV700 Repair →
