Is Your 2013 Mastercraft Touchscreen Acting Like It Has a Mind of Its Own? Here's What's Happening and How to Fix It
Phantom touches, random control activations, frozen zones that don't respond — the 2013–2016 Mastercraft 7" HV700 has a known touch controller failure that owners describe as the screen having a 'mind of its own.' Here's exactly what's happening and how to fix it with a 3-day mail-in repair from $2,200 (vs $3,495+ at the dealer).
Is Your 2013 Mastercraft Touchscreen Acting Like It Has a Mind of Its Own? Here's What's Happening and How to Fix It
Phantom touches. Random control activations. Zones that go frozen for no reason. If your 2013–2016 Mastercraft 7″ HV700 display is acting up at the helm, it's not your imagination — and it's not user error. It's a known failure mode of the internal touch controller, and the fix is faster and far less expensive than a dealer replacement. Here's exactly what's happening behind the glass.

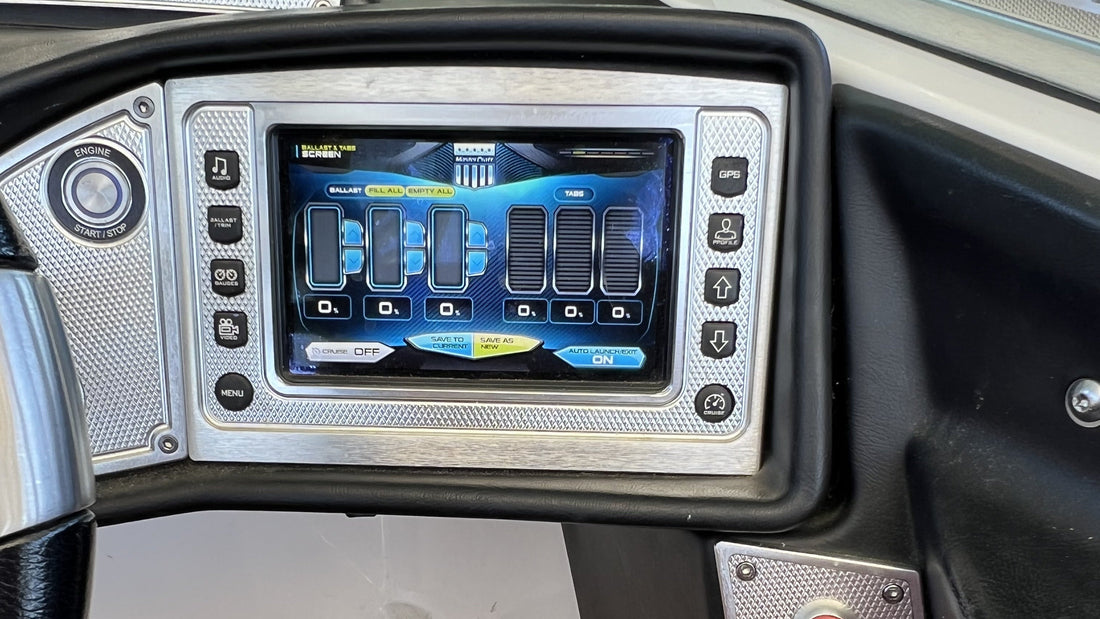

A 2013 Mastercraft HV700 display in the wild — classic ghost-touch symptoms after years of UV and marine environment exposure.
What Is the 2013 Mastercraft Display?
The 7″ Murphy/Enovation HV700 touchscreen
The 2013 model year is when Mastercraft transitioned to the 7″ Murphy / Enovation HV700 at the helm, replacing the earlier Medallion Smart Touch system. The HV700 (and its high-bright variant, the HV700HB) is a sunlight-readable 7″ touchscreen that handles ballast, surf gates, audio, speed, engine data, and most of the boat's electronic controls. It's built by Murphy Industrial (now Enovation Controls) and runs on Mastercraft's MasterCRAFT helm computer system.
The HV700 isn't a Mastercraft-only display. It's the same physical hardware found on a dozen other premium brands — Supra, Tigé, Centurion, Nautique, Regal, Premier, South Bay, Harris, Four Winns, Bayliner, Sylvan, Manitou, and several others — just with brand-specific cosmetics and integration on the front.
Compatible Part Numbers (HV700 / HV700HB)
Fits 2013–2016 Mastercraft X-Star, ProStar, X-10, X-14V, X-20, X-23, X-25, X-26, X-30, X-35, X-45, X-46, X-55, and X2 — plus the cross-brand list above on the same model years.
The 2 Main Symptoms Owners See
Both come from the same underlying failure
HV700 displays in this generation tend to fail in two very recognizable ways. Most owners see one symptom dominant, then the other develops a few weeks or months later. Both come from the same root cause — the internal touch controller chip aging out.
👻 Ghost Touch / "Mind of Its Own"
Phantom inputs the moment power comes on. The screen randomly activates controls you never touched — ballast pumps cycling, audio source changing, surf side switching, screens flipping on their own. Owners describe it as the display being "possessed" or "acting up by itself."
⏱ Frozen or Unresponsive Areas
Specific parts of the screen go dead — usually starting with one corner or one row of buttons. Taps in those zones don't register at all. Other zones still work normally. Over time the dead area spreads across the display until full sections are unusable.
🎦 Real 2013 Mastercraft Repair
A short look at a 2013 Mastercraft HV700 display showing classic ghost-touch symptoms and walking through the diagnosis.
Why HV700 Displays Develop a Mind of Their Own
It's the touch controller chip, not the LCD itself
What makes the HV700 different from most other marine displays is that the failure mode is electronic, not adhesive. The Medallion screens on Malibu Wakesetters fail through optical bonding delamination — a glue layer breaking down between glass and LCD. The HV700 fails differently: the small touch controller chip inside the display gradually degrades and stops correctly interpreting where your finger lands on the panel.
There are typically three factors that cause this:
- Touch controller chip aging — the sensor IC inside the unit is designed for roughly 5–7 years of typical use. After that window, the internal signal interpretation tends to drift. The chip starts misreading capacitance changes, generating either phantom inputs ("ghost touch") or no input where there should be one ("frozen zones").
- Heat cycling and UV exposure — the boat helm bakes in direct sun, then cools in storage, year after year. Heat accelerates the wear on internal electronics. Combined with UV and humidity, the controller's accuracy degrades faster on a boat than the same chip would on a car or kiosk display.
- Marine humidity and intermittent moisture — once the unit's seal weakens, condensation can start affecting the touch sensor's electrical behavior. Small amounts of moisture inside the housing exaggerate ghost-touch symptoms even when the chip would otherwise still be usable.
How to Remove Your HV700 Display
Front-removable from the dash — no specialty tools
The HV700 on a 2013–2016 Mastercraft comes out of the dash as a complete unit from the front. Standard hand tools, about 15 minutes of work.
- 1Disconnect the boat's battery before starting any work at the helm. Pull the negative terminal to prevent any inrush to the data network.
- 2Access the back of the dash and locate the mounting fasteners securing the HV700 housing to the helm panel.
- 3Remove the mounting fasteners with a standard socket. Set the hardware aside — it gets reused on installation.
- 4Disconnect the wiring harness from the back of the display. The HV700 typically has a single multi-pin connector and a power feed.
- 5The display slides forward out of the dash with its bezel attached. Pack as a complete unit for shipping — no need to disassemble anything further.
Real Customer Result
2013 Mastercraft X-Star — ghost touch fixed
A 2013 Mastercraft X-Star owner shipped in their HV700 display showing both classic symptoms: phantom controls firing the moment power came on, plus a dead zone in the lower-right corner of the screen. Dealer pricing on a replacement unit was running $3,495+ with a 6+ week wait on back-order. After our mail-in repair, the display came back fully functional within 3 business days, with the upgraded touch controller and brighter LED backlight installed.
Why Our Repair Outlasts OEM
What the MTC-7D rebuild upgrades on the original design
We don't just replace your screen with the same part that failed — we rebuild it with components engineered to outlast what came from the factory. Every MTC-7D repair includes:
How to Fix Yours
Mail-in repair service — 3-day turnaround
The HV700 ghost-touch and frozen-zone failures require board-level work and component-level upgrades that aren't realistic to ship as a DIY kit. That's why we offer this as a mail-in repair service: ship us the display, we do the work in-shop, and ship it back ready to install.
MTC-7D Service
Ship with a pre-paid label. We diagnose, upgrade the controller, install the new LCD assembly, test, and return within 3 business days. From $2,200.
Order MTC-7D Service →
Extended Coverage
Optional 3-year extended warranty available at checkout. Backs the upgraded controller and LCD against any recurrence of the original failure mode.
View Warranty Options →
Free Diagnostic
Not 100% sure your screen is HV700? Send us a photo of your display and the year/model of your boat — we'll confirm fitment and the right repair path. No commitment.
Start a Chat →Ready to fix the ghost-touch?
Take Back the Helm
Mail in your 2013–2016 Mastercraft HV700 display. Back in 3 business days with upgraded touch controller, brighter LED, and all original settings preserved. Pay after repair.
Order MTC-7D Repair →
