2012 Mastercraft Touch Screen Delaminating? Here's What's Happening and How to Restore It
The 6.5″ Medallion Viper 1 touchscreen on 2012 Mastercraft X-Series boats has been delaminating across the fleet. After 13+ years of marine UV, heat cycling, and vibration, the original optical bond gives out — and OEM part numbers 5008150 / 5008151 are scarce, slow to source, and expensive when found. Restoring your existing display is faster, cheaper, and uses better components than the original. Here's exactly what's happening behind the glass.

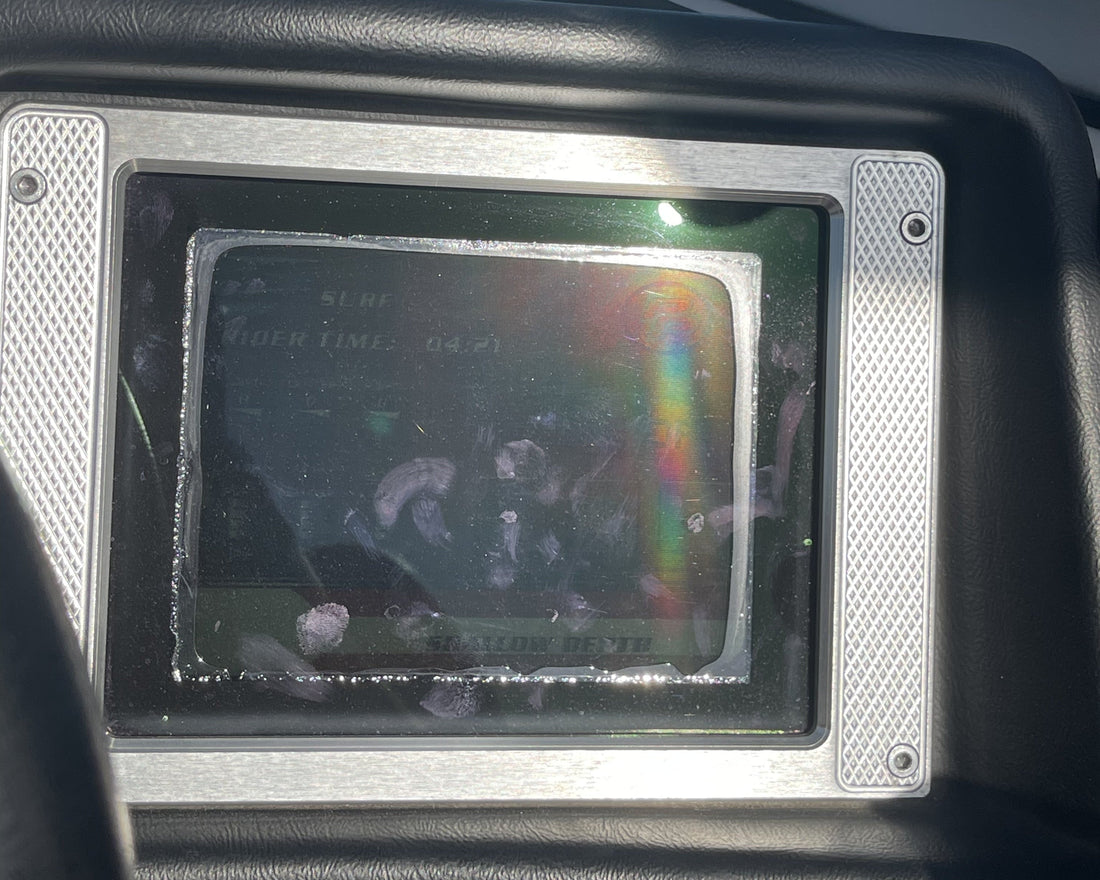

A 2012 Mastercraft X-Series helm display with classic Viper 1 delamination — the optical bond between the LCD and the front glass starting to fail after a decade+ of marine UV and heat exposure.
What Is the 2012 Mastercraft Display?
The 6.5″ Medallion Viper 1 touchscreen
The 2012 model year was the last year Mastercraft shipped the 6.5″ Medallion Viper 1 at the helm. Starting in 2013, the X-Series transitioned to the 7″ Murphy/Enovation HV700 platform — which is a completely different display family with its own failure mode (the touch controller chip ages out, not the optical bond). The 2012 Viper 1 is the Medallion delamination story.
The Viper 1 runs the boat's helm interface: ballast, surf gates, audio, lighting, speed, fuel, engine data, and the Mastercraft helm options screens. It's the same physical hardware platform used on 2012 Sea-Doo Challenger Wake boats and 2012 Chaparral Vortex/SSi models — just with Mastercraft-specific cosmetics, software, and the integration into the helm computer system.
Compatible Part Numbers (Medallion Viper 1)
Fits 2012 Mastercraft X-Series — including the X-2, X-10, X-14V, X-15, X-20, X-25, X-30, X-35, X-45, X-46, X-55, X-Star, and ProStar. Cross-compatible with 2012 Sea-Doo Challenger Wake 210/230 (PN 278002612) and 2012 Chaparral Vortex/SSi/H2O (PN 15.00250/15.00242) running the same Medallion platform.
The 4 Most Common Failures
What goes wrong on 2012 Mastercraft Viper 1 displays
The Viper 1 on a 2012 Mastercraft is now 13+ years old. Delamination is almost always the first sign — and once the edge seal starts to fail, the other symptoms tend to follow in sequence.
🌊 Delamination
The cloudy bubble pattern most owners notice first. The optical adhesive between the LCD and the glass starts separating — usually beginning at one corner and spreading across the panel over time.
🌓 Dim or Dark Backlight
The original LCD backlight loses output after a decade+ of seasonal use. The screen becomes hard to read in direct sun, then progressively dimmer until it can go black entirely. Our replacement uses a brighter, modern LED.
⏱ Frozen or Unresponsive Touch
Buttons stop registering, zones go dead, or taps land off-target. As the adhesive separates, it pulls the digitizer out of alignment with the LCD — the touch input no longer matches what you see on screen.
🔴 Ghost Touch & LCD Defects
Phantom presses, vertical stripes, random color bars, backlight bleed. Moisture entering through the delaminated seal accelerates this damage once it starts.
🎦 Real 2012 Mastercraft Repair
A short walkthrough of a 2012 Mastercraft Viper 1 display showing classic delamination, along with what the restored unit looks like coming back.
Why This Happens on 2012 Mastercraft Boats
The real cause — not user error
The Viper 1 was Medallion's first-generation optically bonded marine display. The bonding process at the time wasn't engineered for what a Mastercraft helm faces over a decade of seasonal use. Four forces work against the original adhesive bond:
- Direct UV exposure — the X-Series helm catches sun for most of the day, season after season. The Viper 1's cover glass filters some UV but not all of it. Over a decade+, the polymer chains in the optical adhesive break down. The bond becomes less elastic, less tacky, and less able to maintain its grip on the LCD.
- Heat cycling — a Mastercraft that bakes in 90°F sun all afternoon and gets stored cool overnight goes through dozens of thermal cycles every season. The materials in the display sandwich expand and contract at different rates. Over 13+ years, voids form at the bond line.
- Hull vibration — the X-Series hull, wakeboard tower, and inboard drivetrain transmit considerable vibration to the helm. Persistent vibration accelerates the formation of micro-voids in adhesive that's already weakened by heat and UV.
- Marine humidity and moisture intrusion — once a gap forms at the edge of the bond, moisture has a path inward. That accelerates delamination spread and starts damaging the LCD backlight and touch controller.
How to Remove the Display
Front-removable from the X-Series helm — no specialty tools
The Viper 1 on a 2012 Mastercraft X-Series comes out of the dash from the front as a complete unit with its bezel attached. Standard hand tools, about 15–20 minutes of work.
- 1Disconnect the boat's battery before any work at the helm. Pull the negative terminal to prevent any inrush to the helm data network.
- 2Access the back of the dash and locate the mounting fasteners for the display housing. The Viper 1 is typically mounted with four screws on the rear face.
- 3Remove the mounting fasteners with a standard socket. Hardware reuses on installation, so set it aside.
- 4Disconnect the wiring harness from the back of the display. The Viper 1 has a single multi-pin connector for the helm data bus and a power feed.
- 5The display slides forward out of the dash with its bezel attached. Pack as a complete unit for shipping. No need to disassemble further.
Real Customer Result
2012 Mastercraft X-Star — full restoration
A 2012 Mastercraft X-Star owner shipped in his Viper 1 display with fully spread delamination, a dim lower half, and the touch grid drifting in the upper-right corner. After calling around to Mastercraft dealers and getting either back-orders, $4,000+ quotes, or no answer at all on the original 5008150, he sent it in for restoration. The unit came back within 3 business days with a fully rebonded display, brighter LED backlight, and the upgraded anti-fingerprint cover glass installed.
Why the Restored Display Outlasts OEM
What we upgrade during the rebuild
The restored display isn't just a re-bonded version of what failed — we rebuild it with components engineered to outlast the original Viper 1 design. Every MTC-6B restoration includes:
How to Restore Yours
Mail-in restoration service — 3-day turnaround
Because the Mastercraft Viper 1 rebuild requires custom optical re-bonding with the upgraded adhesive, it's not feasible to ship as a DIY kit. We do the rebuild in-shop and return the restored unit ready to plug in.
MTC-6B Service
Ship with a pre-paid label. We rebuild the optical bond, install a brighter LED, test, and return within 3 business days. From $2,000. Pay after repair.
Order MTC-6B Restoration →
Free Diagnostic
Send us a photo of your screen and your year/model. We'll confirm the display is Viper 1 and the right restoration path. No commitment.
Start a Chat →
Same Fitment
Same restoration also fits 2012 Sea-Doo Challenger Wake (PN 278002612) and 2012 Chaparral Vortex (15.00250/15.00242). Identical platform, identical fix.
